Rover 200 Workshop Manual (1995-1999)28 · Heating & ventilation
28 · Heating & A/C

Resistor unit (page 2 of 4)

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Repairs
Heating & ventilationResistor unit · page 2 of 4
Diagram
  1. Disconnect heater control cable from heater valve and release from bulkhead.
Disconnect heater control cable from heater valve and release from bulkhead.

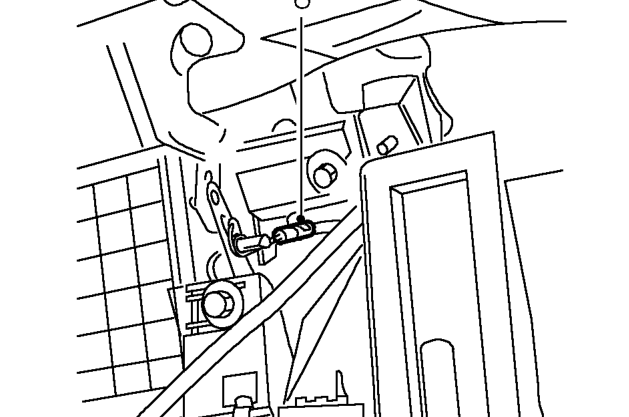

  1. Disconnect air recirculation control cable from blower assembly.
Disconnect air recirculation control cable from blower assembly.

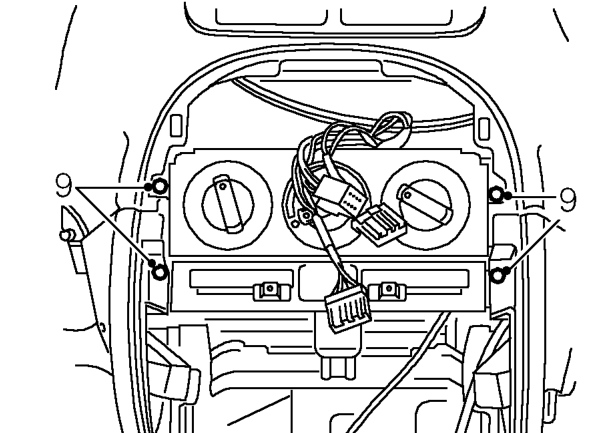

  1. Remove 4 screws securing heater controls and withdraw from fascia.
Remove 4 screws securing heater controls and withdraw from fascia.

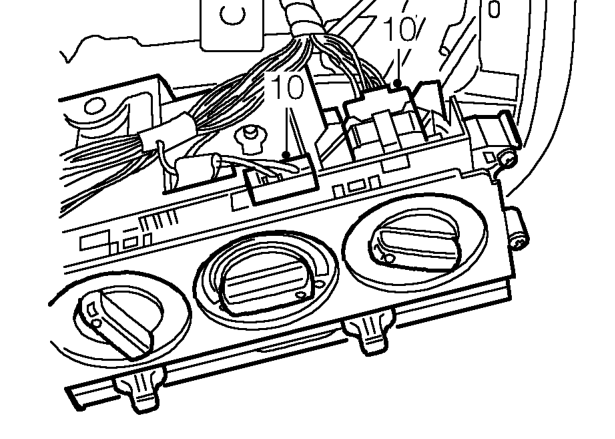

  1. Models with heater: Disconnect 2 multiplugs from heater controls.
  2. Models with air conditioning: Disconnect 3 multiplugs from heater controls.
