CONTROL CABLE - AIR DISTRIBUTION

Service repair no - 80.10.12

Remove

  1. Remove heater controls. See this section.

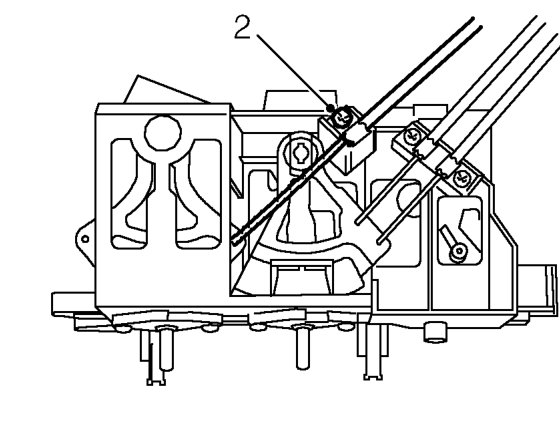

Control cable - air distribution – Remove heater controls. See this section.
  1. Remove screw securing air distribution cable and remove from heater controls.

Refit

  1. Fit air distribution cable to heater controls and secure with screw.
  2. Fit heater controls. See this section.

CONTROL CABLE - AIR RECIRCULATION

Service repair no - 80.10.17

Remove

  1. Remove heater controls. See this section.

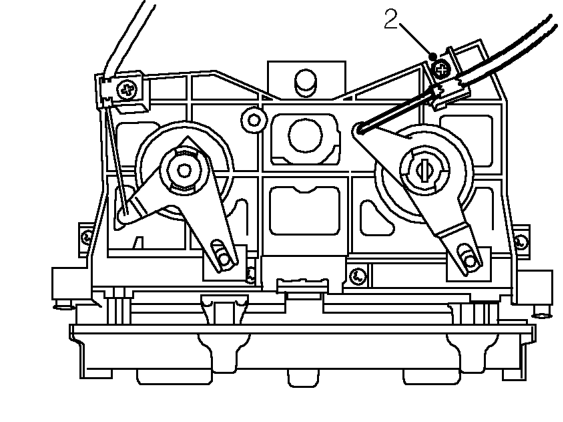

Control cable - air recirculation – Remove heater controls. See this section.
  1. Remove screw securing air recirculation cable and remove from heater controls.

Refit

  1. Fit air recirculation cable to heater controls and secure with screw.
  2. Fit heater controls. See this section.
