Fuel tank - ’l’ series (page 2 of 3)

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Repairs
Fuel delivery systemFuel tank - ’l’ series · page 2 of 3
Diagram

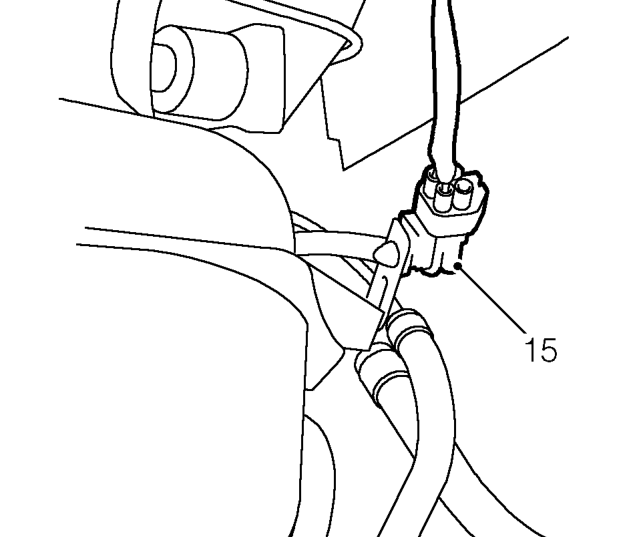

  1. Disconnect fuel tank sender unit multiplug from harness.
  2. Remove fuel tank from beneath vehicle.

Do not carry out further dismantling if component is removed for access only.

Do not carry out further dismantling if component is removed for access only.

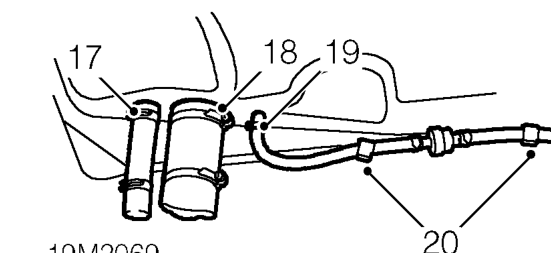

  1. Release clip securing breather hose to fuel tank and remove breather hose.
  2. Loosen clip securing filler neck hose to fuel tank and remove filler neck hose.
  3. Release clip and disconnect breather hose from fuel tank.
  4. Release breather hose and valve from 2 clips on tank and remove.
Release breather hose and valve from 2 clips on tank and remove.

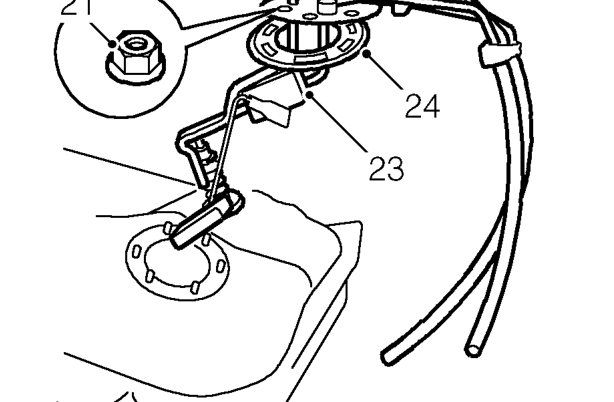

  1. Remove 6 nuts securing fuel tank sender unit to tank.
  2. Release sender unit from fuel tank.
  3. Remove sender unit from tank.
  4. Remove seal from sender unit.
