InstrumentsCoolant temperature gauge

COOLANT TEMPERATURE GAUGE

Service repair no - 88.25.14

Remove

  1. Remove instrument pack. See this section.

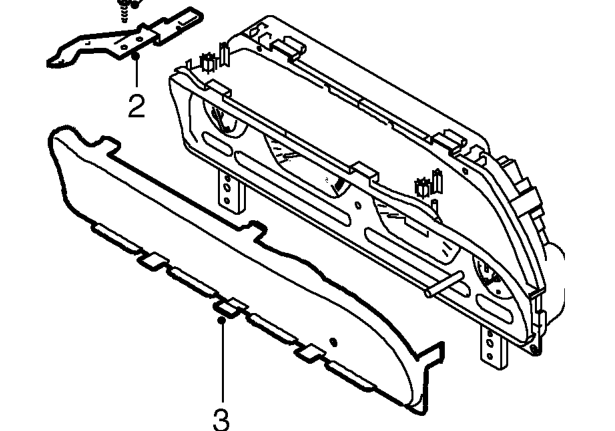

Coolant temperature gauge – Remove instrument pack. See this section.
  1. Remove screws and support brackets from housing.
  2. Release 4 clips securing face plate to housing and remove face plate.

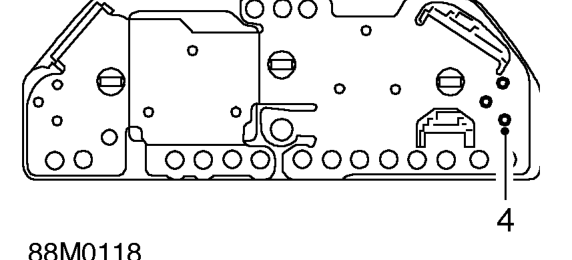

Coolant temperature gauge – Release 4 clips securing face plate to housing and remove face plate.
  1. Remove 3 screws and remove coolant temperature gauge.

Refit

  1. Fit coolant temperature gauge and secure with screws.
  2. Fit face plate to housing.
  3. Fit support brackets and tighten screws.
  4. Fit instrument pack. See this section.

ENGINE COOLANT TEMPERATURE GAUGE SENSOR - ’K’ SERIES

Service repair no - 88.25.20

Remove

  1. Disconnect battery earth lead.

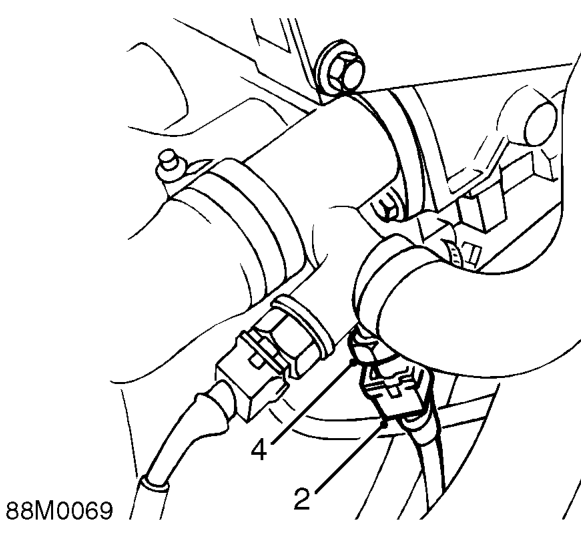

Engine coolant temperature gauge sensor - ’k’ series – Disconnect battery earth lead.
  1. Disconnect multiplug from engine coolant temperature gauge sensor.
  2. Position container below sensor to collect coolant spillage.
  3. Remove engine coolant temperature gauge sensor.

Refit

  1. Clean threads of engine coolant temperature gauge sensor.
  2. Apply Loctite 577 to threads of engine coolant temperature gauge sensor.
  3. Fit engine coolant temperature gauge sensor and tighten to 10 Nm.
  4. Connect multiplug to engine coolant temperature gauge sensor.
  5. Connect battery earth lead.
  6. Top-up coolant. See MAINTENANCE.
