SPEEDOMETER

Service repair no - 88.30.01

Remove

  1. Remove instrument pack. See this section.

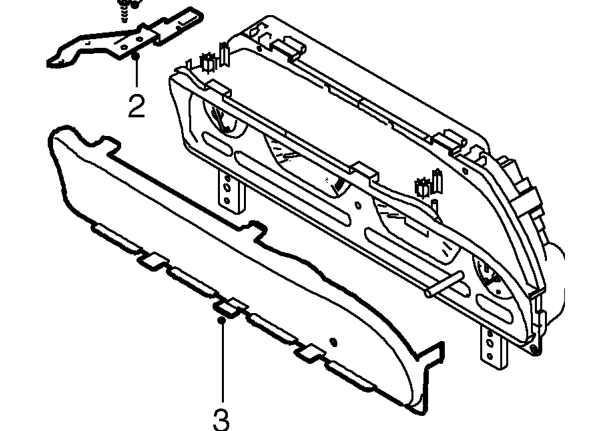

Speedometer – Remove instrument pack. See this section.
  1. Remove screws and support brackets from housing.
  2. Release 4 securing clips face plate to housing and remove face plate.

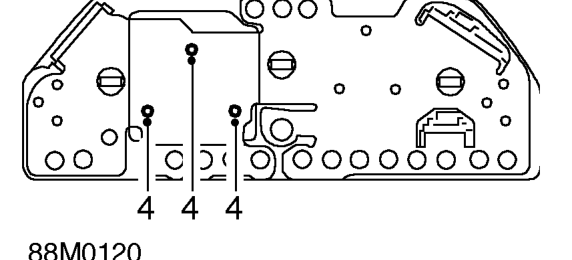

Speedometer – Release 4 securing clips face plate to housing and remove face plate.
  1. Remove 3 screws and remove speedometer.

Refit

  1. Fit speedometer to instrument pack and secure with screws.
  2. Fit face plate to housing.
  3. Fit support brackets and tighten screws.
  4. Fit instrument pack. See this section.

VEHICLE SPEED SENSOR - ’R65’ GEARBOX

Service repair no - 88.30.14

Remove

  1. Disconnect battery earth lead.
  2. Raise front of vehicle.

WARNING: Support on safety stands.

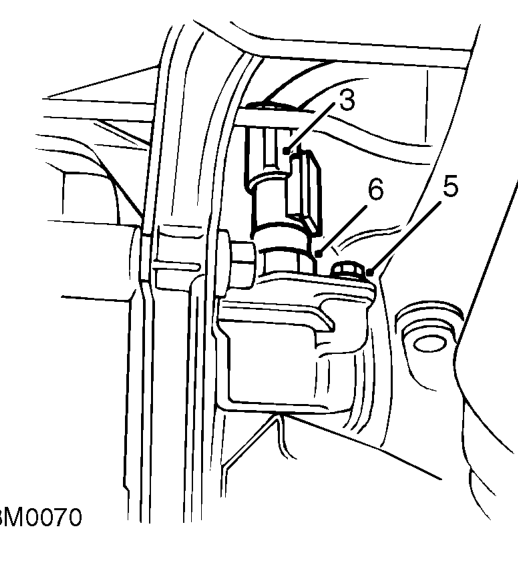

Vehicle speed sensor - ’r65’ gearbox – Raise front of vehicle.
  1. Disconnect multiplug from vehicle speed sensor.
  2. Position container beneath sensor to collect any oil spillage.
  3. Remove bolt securing speedometer drive pinion housing to gearbox.
  4. Release speedometer drive pinion housing from gearbox.
  5. Remove speedometer drive pinion housing.
