InstrumentsFuel gauge

FUEL GAUGE

Service repair no - 88.25.26

Remove

  1. Remove instrument pack. See this section.

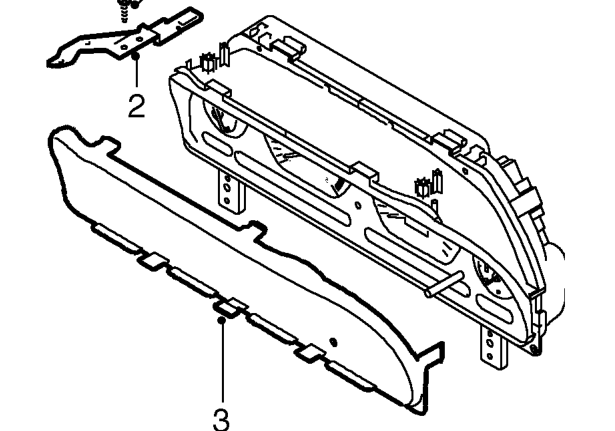

Fuel gauge – Remove instrument pack. See this section.
  1. Remove screws and support brackets from housing.
  2. Release 4 clips securing face plate to housing and remove face plate.

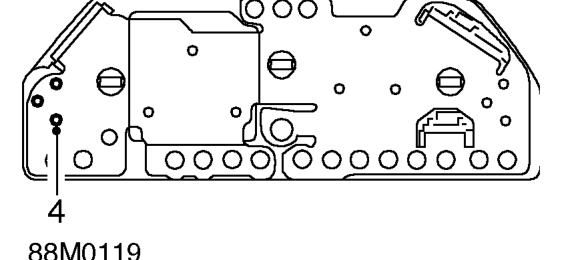

Fuel gauge – Release 4 clips securing face plate to housing and remove face plate.
  1. Remove 3 screws and remove fuel gauge.

Refit

  1. Fit fuel gauge and secure with screws.
  2. Fit face plate to housing.
  3. Fit support brackets and tighten screws.
  4. Fit instrument pack. See this section.

FUEL GAUGE TANK UNIT - ’K’ SERIES

Service repair no - 88.25.32

NOTE: The fuel gauge tank unit and fuel pump are integral parts of the fuel pump housing and cannot be renewed separately. See FUEL DELIVERY SYSTEM, Repairs.
