7. Remove and discard ’O’ ring from speedometer drive pinion housing.

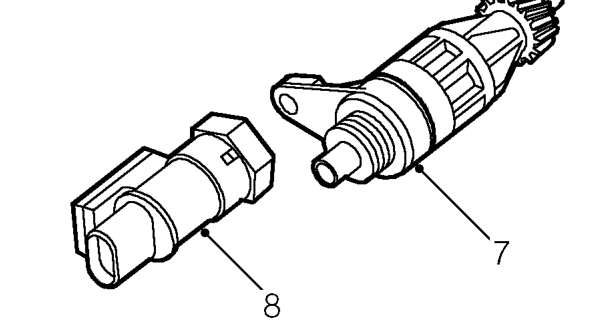

8. Remove vehicle speed sensor.

Refit

1. Fit and tighten vehicle speed sensor to speedometer drive pinion housing.
2. Clean mating faces of gearbox and speedometer drive pinion housing.
3. Lubricate with gearbox oil and fit new ’O’ ring to speedometer drive pinion housing.
4. Fit speedometer drive pinion housing to gearbox and align bolt holes.
5. Fit bolt securing speedometer drive pinion housing to gearbox and tighten to 9 Nm.
6. Connect multiplug to vehicle speed sensor.
7. Top-up gearbox oil level. See MAINTENANCE.
8. Connect battery earth lead.

TACHOMETER

Service repair no - 88.30.21

Remove

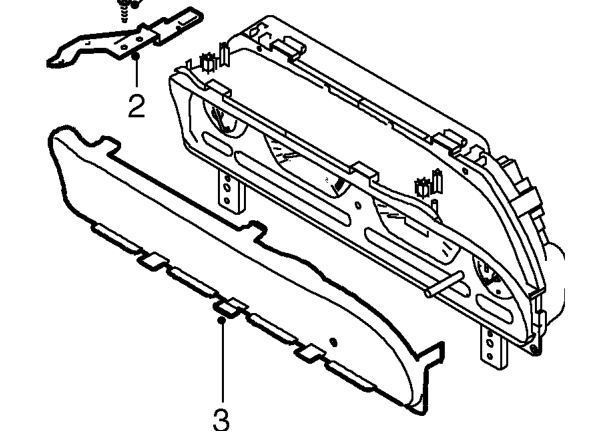

1. Remove instrument pack. See this section.

2. Remove screws and support brackets from housing.

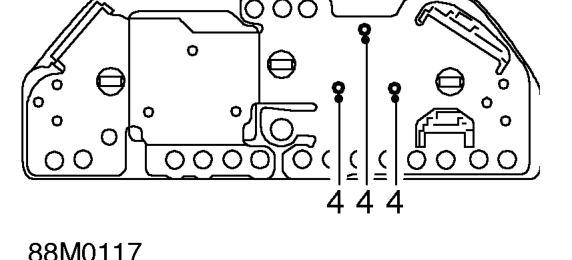

3. Release 4 clips securing face plate to housing and remove face plate.

4. Remove 3 screws and remove tachometer.

Refit

1. Fit tachometer and secure with screws.
2. Fit face plate to housing.
3. Fit support brackets and tighten screws.
4. Fit instrument pack. See this section.
