ENGINE COOLANT TEMPERATURE GAUGE SENSOR - ’L’ SERIES WITHOUT AIR CONDITIONING

Service repair no - 88.25.20

Remove

Engine coolant temperature gauge sensor - ’l’ series without air conditioning – Service repair no - 88.25.20
  1. Disconnect engine coolant temperature gauge sensor Lucar from harness.
  2. Position container below sensor to collect coolant spillage.
  3. Remove engine coolant temperature gauge sensor.

Refit

  1. Clean threads of engine coolant temperature gauge sensor.
  2. Apply Loctite 577 to threads of engine coolant temperature gauge sensor.
  3. Fit engine coolant temperature gauge sensor and tighten to 5 Nm.
  4. Connect engine coolant temperature gauge sensor Lucar to harness.
  5. Top-up coolant level. See MAINTENANCE.

ENGINE COOLANT TEMPERATURE GAUGE SENSOR - ’L’ SERIES WITH AIR CONDITIONING

Service repair no - 88.25.20.20

Remove

  1. Remove alternator. See ELECTRICAL, Repairs.

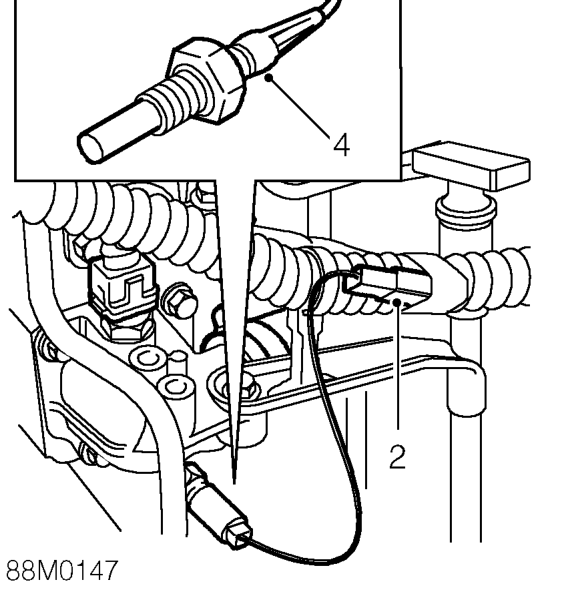

Engine coolant temperature gauge sensor - ’l’ series with air conditioning – Remove alternator. See ELECTRICAL, Repairs.
  1. Disconnect engine coolant temperature gauge sensor Lucar from harness.
  2. Position container below sensor to collect coolant spillage.
  3. Remove engine coolant temperature gauge sensor.

Refit

  1. Clean threads of engine coolant temperature gauge sensor.
  2. Apply Loctite 577 to threads of engine coolant temperature gauge sensor.
  3. Fit engine coolant temperature gauge sensor and tighten to 5 Nm.
  4. Connect engine coolant temperature gauge sensor Lucar to harness.
  5. Top-up coolant level. See MAINTENANCE.
  6. Fit alternator. See ELECTRICAL, Repairs.
