Rover 200 Workshop Manual (1995-1999)32 · Instruments
32 · Electrical

Fuel gauge tank unit - ’l’ series

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Repairs › Fuel gauge tank unit - ’l’ series
InstrumentsFuel gauge tank unit - ’l’ series

FUEL GAUGE TANK UNIT - ’L’ SERIES

Service repair no - 88.25.32

Remove

  1. Remove fuel tank assembly. See FUEL DELIVERY SYSTEM, Repairs.
Fuel gauge tank unit - ’l’ series – Remove fuel tank assembly. See FUEL DELIVERY SYSTEM, Repairs.

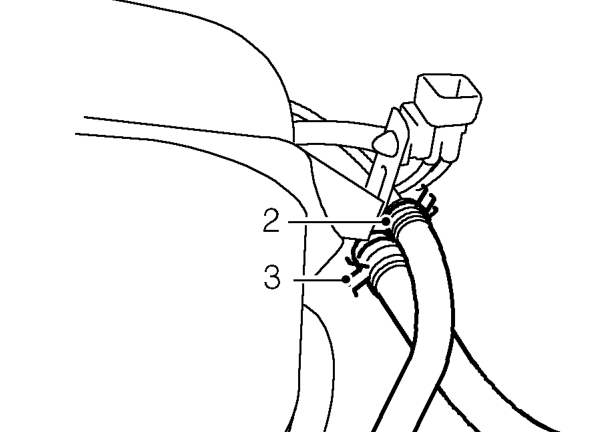

  1. Release clip and disconnect fuel feed hose from sender unit.
  2. Release clip and disconnect fuel return hose from sender unit.
Fuel gauge tank unit - ’l’ series – Release clip and disconnect fuel return hose from sender unit.

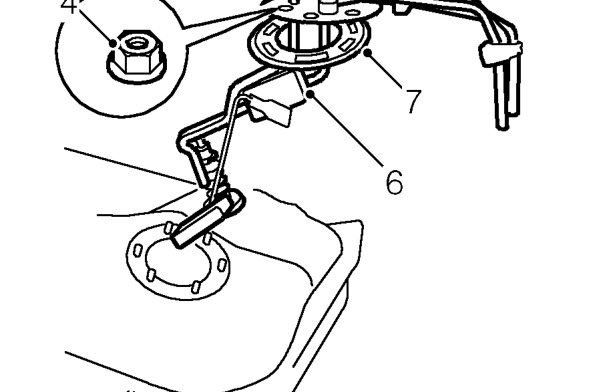

  1. Remove 6 nuts securing sender unit to fuel tank.
  2. Release sender unit from fuel tank.
  3. Remove sender unit from fuel tank.
  4. Remove seal from sender unit.

Refit

  1. Clean mating face of sender unit and fuel tank.
  2. Clean seal and fit to sender unit.
  3. Fit sender unit to fuel tank.
  4. Fit nuts securing sender unit to fuel tank and tighten to 9 Nm.
  5. Connect fuel return hose to sender unit and secure with clip.
  6. Connect fuel feed hose to sender unit and secure with clip.
  7. Refit fuel tank assembly. See FUEL DELIVERY SYSTEM, Repairs.
