Workshop Manuals Factory service & repair Rover
Rover 200 Workshop Manual (1995-1999)17 · Manual gearbox - R65
17 · Transmission

Models with ABS (page 2 of 3)

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Repairs
Manual gearbox - R65Models with ABS · page 2 of 3
Diagram

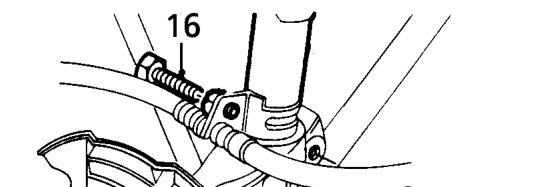

  1. Remove pinch bolt securing front hub to damper.
Remove pinch bolt securing front hub to damper.

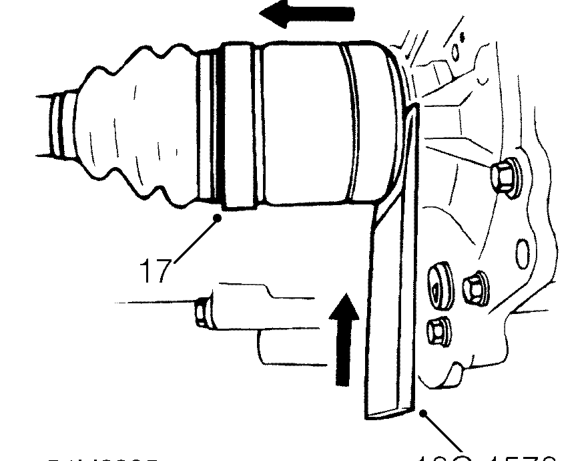

  1. With an assistant carefully pulling hub assembly outwards, use tool 18G 1578, to release drive shaft from differential.

CAUTION: Pull drive shaft horizontally to avoid damaging differential oil seal.

  1. Remove drive shaft and front hub assembly.
Remove drive shaft and front hub assembly.

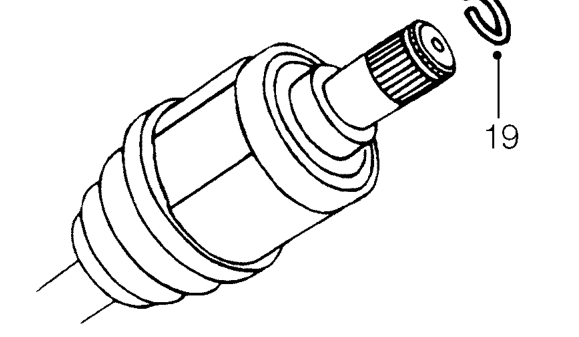

  1. Remove and discard circlip from drive shaft.
Remove and discard circlip from drive shaft.

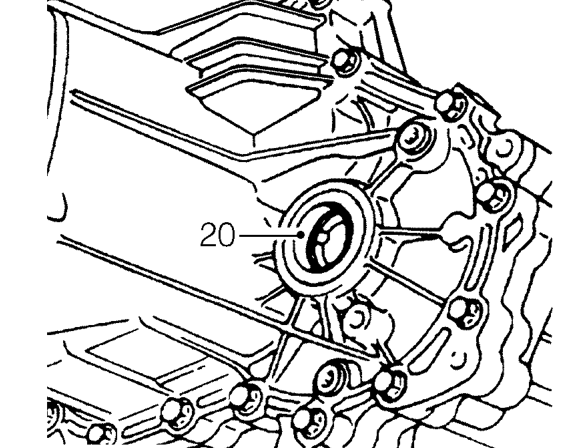

  1. Carefully prise oil seal out of differential housing and discard oil seal.
