Sunroof relay (page 2 of 4)

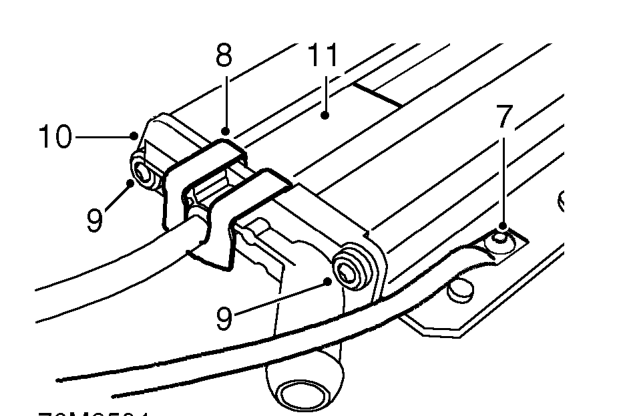

7. Remove screw and release drive cable end tube from frame.
8. Remove 2 clips securing drive cable tubes to end caps.
9. Remove 2 screws securing end cap to frame.
10. Release end cap from frame.
11. Remove buffer from slide channel.

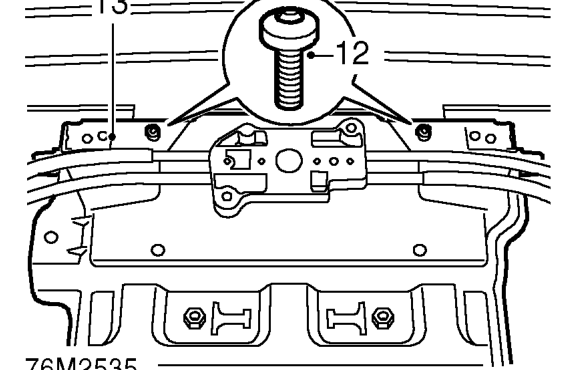

12. Remove 2 Torx screws securing motor bracket to frame.
13. Remove bracket and tubes assembly from drive cables.

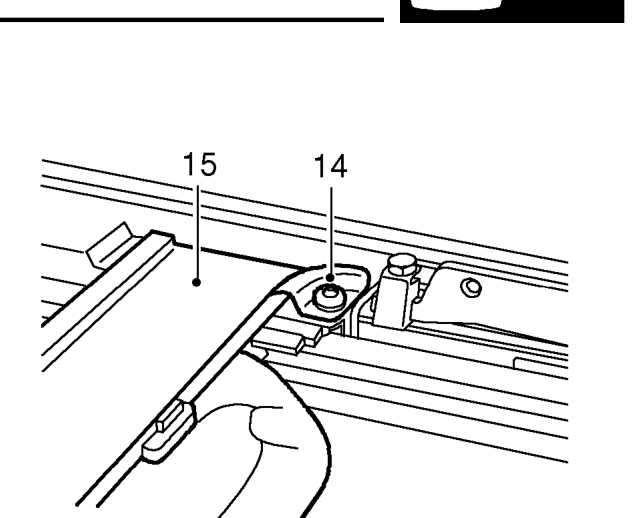

14. Remove 2 Torx screws securing drain channel to rear supports.
15. Release from retainers and remove drain channel.

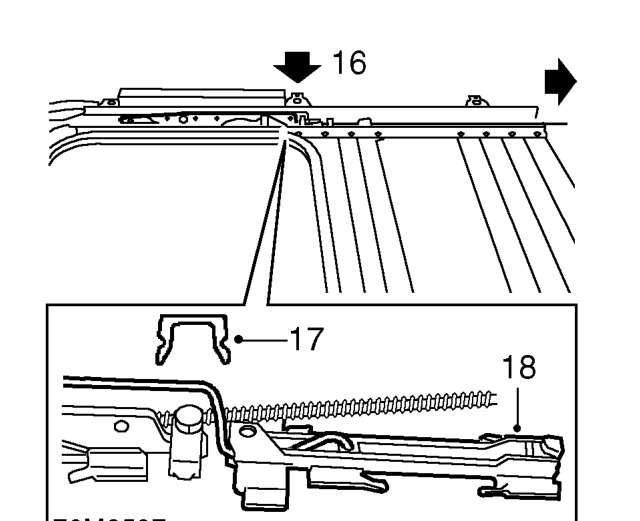

16. Press adjustable stop down fully, pull cable and culisse assembly from channel.

NOTE: Press rear corner of sunshade down to clear sunshade stop.

17. Collect spacer from between culisse and rear support.
18. Remove rear support from spring.
