InformationFront Bulkhead Area

Front Bulkhead Area

  • With the bonnet opened, coat the joints of the bulkhead, inner wing and side frame and around the back of the headlight assembly.

Nozzle used: B

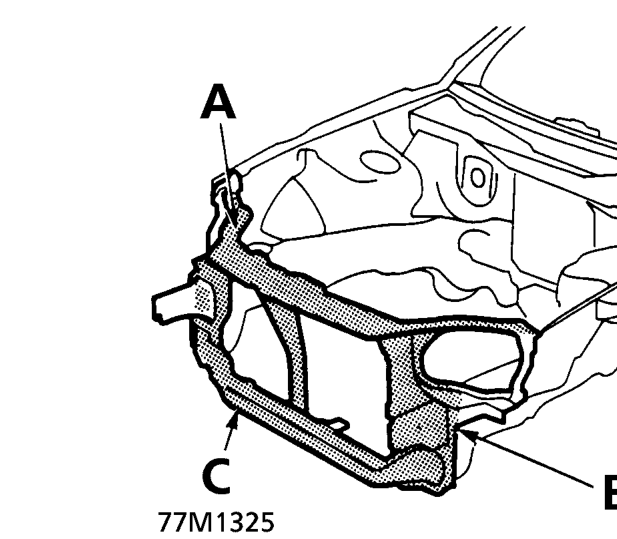

Front bulkhead area – Nozzle used: B

A Bulkhead Upper Frame B Side Bulkhead C Front lower cross member

Bulkhead Back

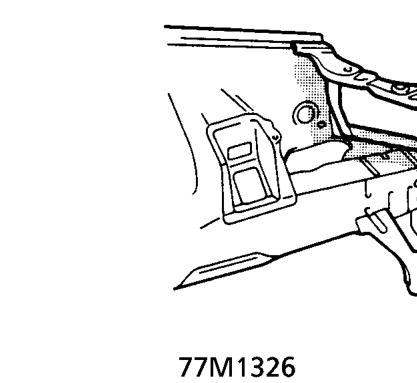

Bulkhead back – A Bulkhead Upper Frame B Side Bulkhead C Front lower cross member

Front Lower Cross Member and Upper Frame, Inside

  • Coat the inside of the front lower cross member.

Nozzles used: A and B

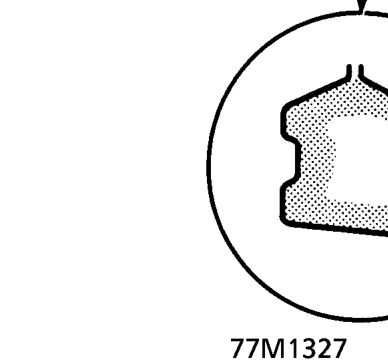

Front lower cross member and upper frame, inside – Nozzles used: A and B

A Front Lower Cross Member
