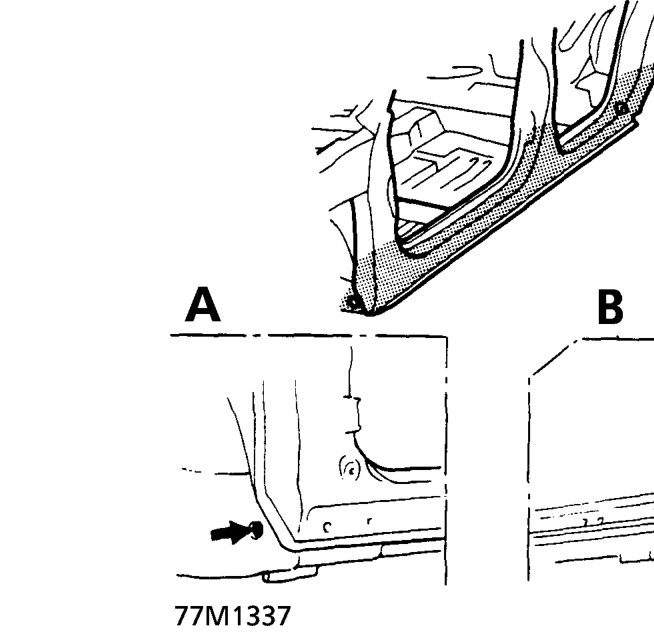

Side Sill, Inside

Side Sill, Inside

• Remove the front and rear grommets and side sill panel to spray agent.
• Fully insert the nozzle into the holes and spray. Move the nozzle right and left, and up and down while pulling it back out of the grommet hole.

NOTE: Spray agent until it drips from the drain hole.

Nozzle used: A

A Front B Rear

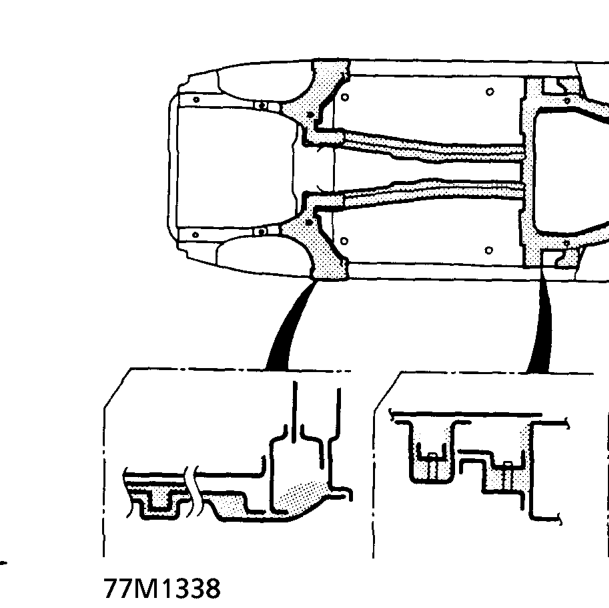

Under-Floor Member/Floor Frame, Inside

• To spray agent to the inside of the under floor member, insert the nozzle in the holes in the members.
• Also coat the under-floor, side sill, and front and rear inner wings at the ends.

Nozzle used: A
