Front Wing, Underside

Front Wing, Underside

Apply anti-rust agent to the end of the wing, inner wing, and side sill installation.

NOTE: Apply enough agent to the front door side, wheel arch end.

If the wing is to be removed, care must be taken to avoid damaging its paint finish. It is advisable to

Inner Wing Upper Member Inside

• Remove the front wing and grommets.
• Remove the air scoop grille in the dashboard upper and coat the inside of the inner wing upper member with anti-rust agent.

Nozzles used: A and B

apply agent to the entire surface of the back of the wing.

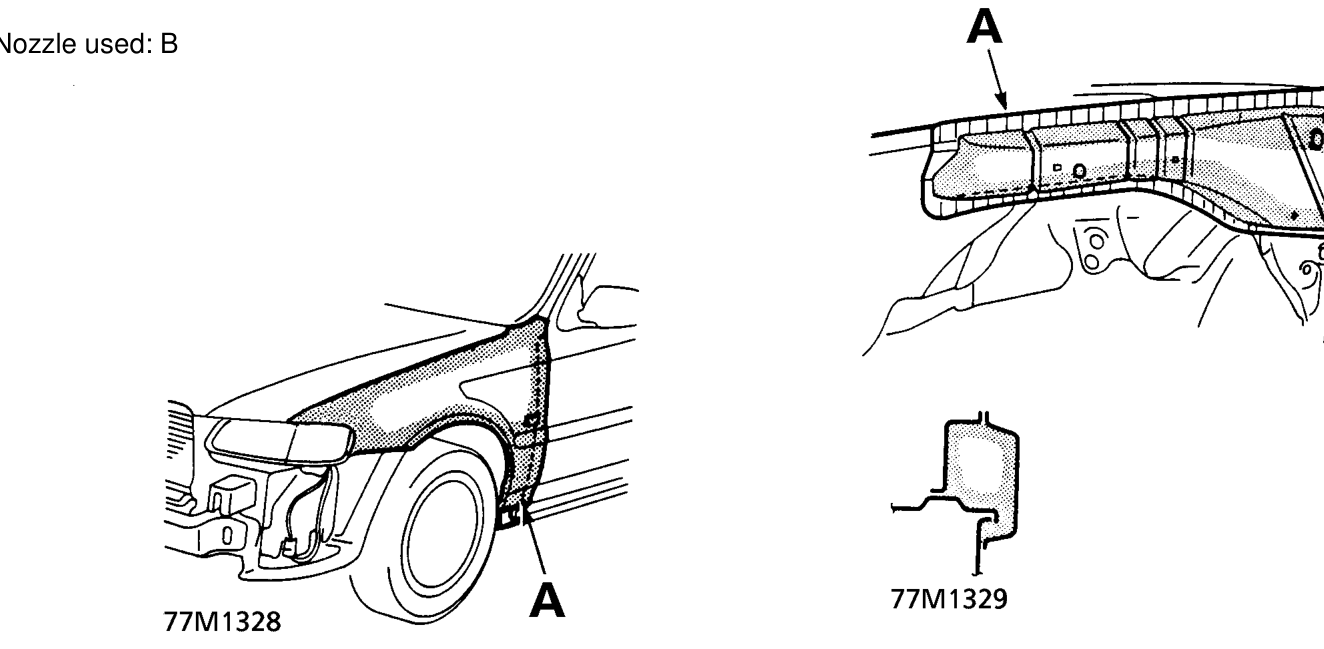

Also apply agent to the front wing filling pillar.

Nozzle used: B

A Filling Pillar

A Inner Wing Upper Member
