Spring Housing

Spring Housing

• Spray agent on the inner wing, front wing stay, upper member and spring bracket as shown. Undercoat the inner wing where anti-rust agent or undercoat has not yet been applied.

NOTE: Coat the inner wing upper member, particularly the upper face. Undercoat the inner wing mounting area of the inner wing and upper face of the inner wing.

Nozzles used: A and C

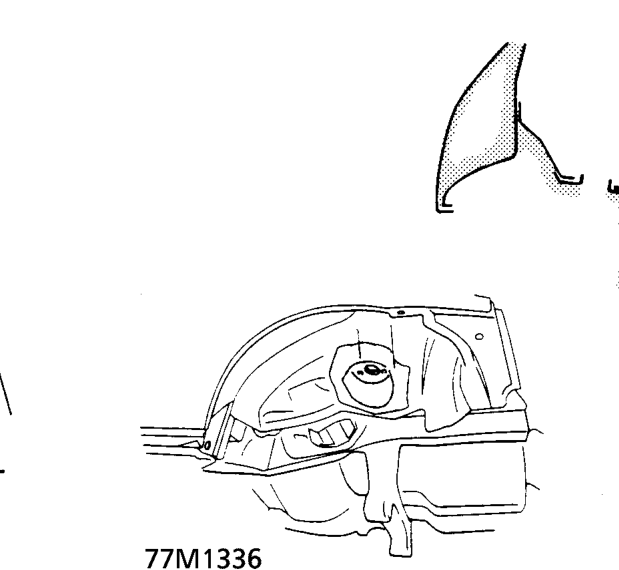

Rear Inner Wing

• Coat the gaps between the inner and outer wings, including the spring base.
• Apply agent to the edge of the rear side frame, side sill and rear floor.
• Undercoat the inner wing where undercoat or anti-rust agent has not yet been applied.

Nozzles used: B and C
