Engine - K SeriesValve stem oil seal · page 2 of 2

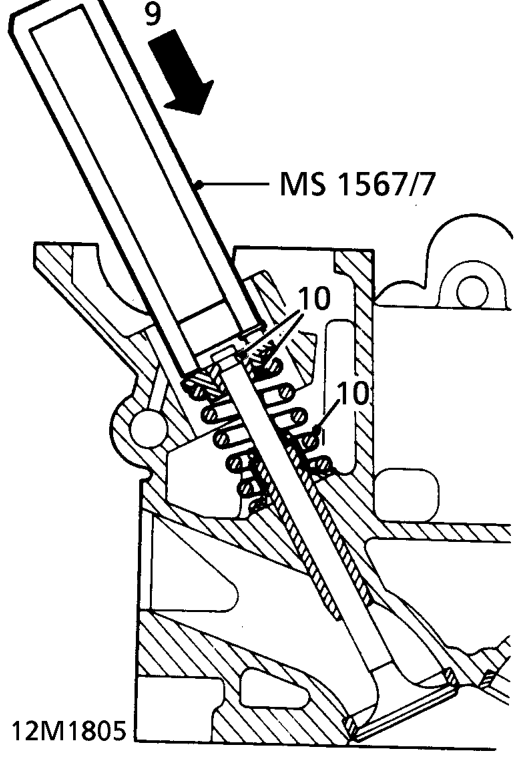

8. Position tool MS 1567/7 to valve spring cap.
9. Strike tool firmly with hammer to release spring cap collets.
10. Remove collets, spring cap, and valve spring.

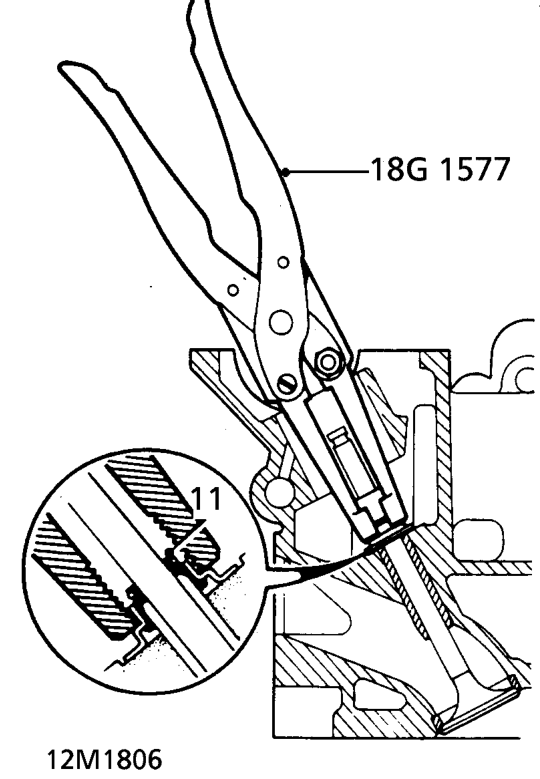

11. Use tool 18G 1577 to remove valve stem oil seal.
