Rover 400 Workshop Manual (1995-2000)20 · Automatic gearbox
20 · Transmission

Selector cable

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Repairs › Selector cable
Automatic gearboxSelector cable

SELECTOR CABLE

Service repair no - 44.15.08

CAUTION: For safety precautions refer to SRS section.

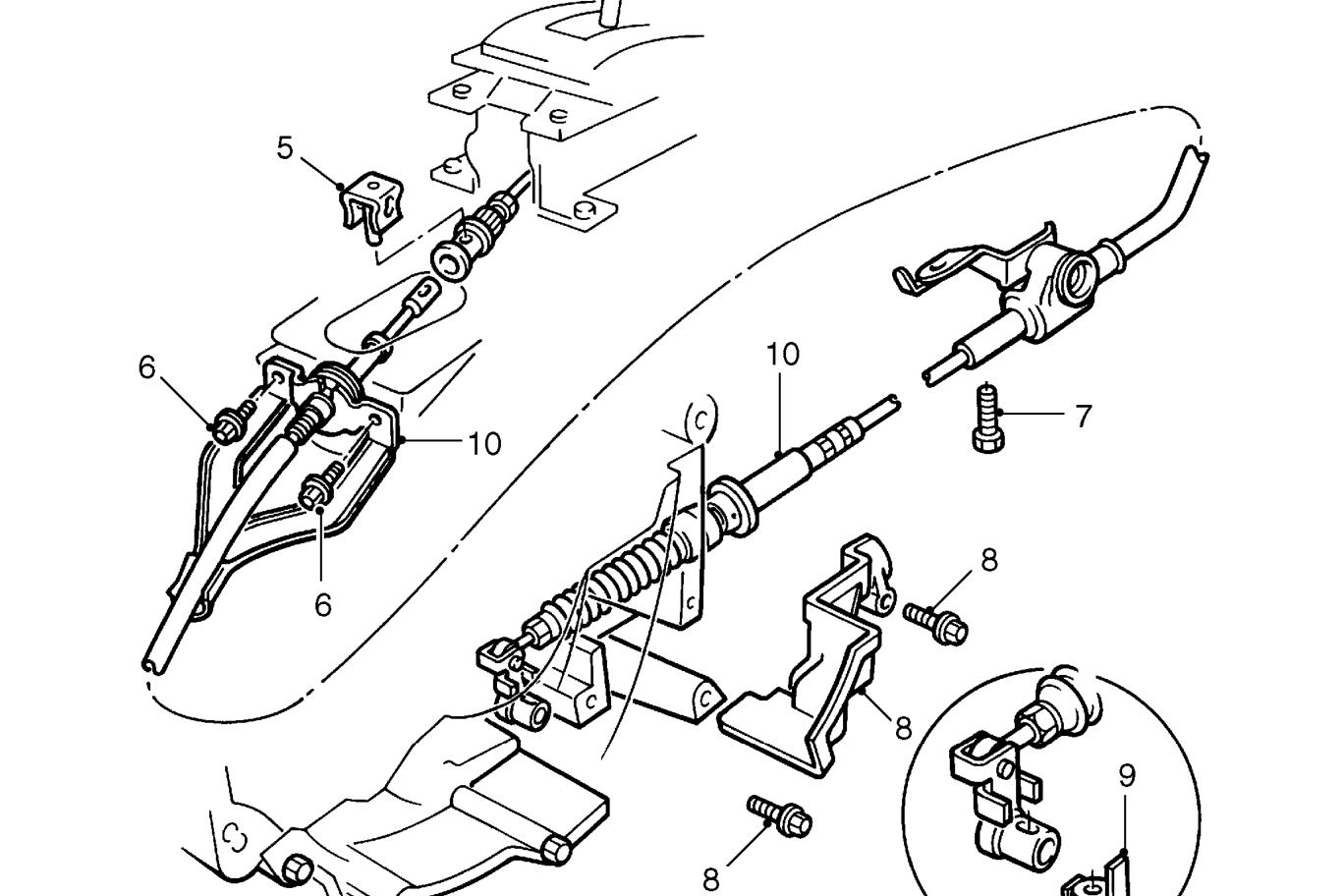

Selector cable – Service repair no - 44.15.08

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Disconnect both battery leads, negative lead first.
  2. Remove front console. See BODY, Interior trim components.
  3. Move selector to ’N’ position.
  4. Remove lock pin from cable adjuster.
  5. Remove 2 bolts securing selector cable mounting bracket.
  6. Remove bolt securing cable support bracket.
  7. Remove 2 bolts securing selector cable cover and remove cover.
  8. Release lock washer and remove bolt securing selector cable to gearbox.
  9. Remove selector cable, remove mounting bracket from cable.
