AUTOMATIC GEARBOX & CONVERTER - UP TO 97.5 MY

Service repair no - 44.20.02/99

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove road wheel(s).
  2. Remove air cleaner. See ENGINE MANAGEMENT SYSTEM - PGMFi, Repairs.
  3. Remove underbelly panel. See BODY, Exterior fittings.
  4. Drain gearbox oil. See MAINTENANCEMaintenance.
  5. Drain cooling system. See COOLING SYSTEM, Adjustments.
  6. Disconnect both battery leads, negative first.
  7. Remove distributor. See ENGINE MANAGEMENT SYSTEM - PGMFi, Repairs.

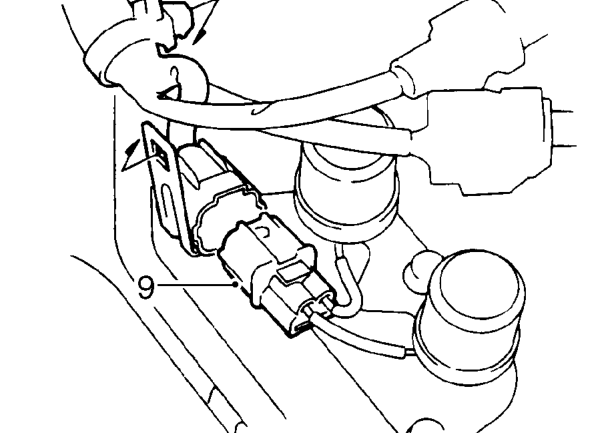

Automatic gearbox & converter - up to 97.5 my – Remove distributor. See ENGINE MANAGEMENT SYSTEM - PGMFi, Repairs.
  1. Disconnect lock-up control solenoid multiplug from engine harness.

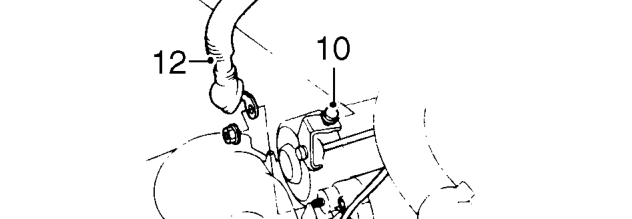

Automatic gearbox & converter - up to 97.5 my – Disconnect lock-up control solenoid multiplug from engine harness.
  1. Remove bolt securing engine harness bracket to starter motor.
  2. Disconnect lucar connector from starter solenoid.
  3. Pull back terminal cover, remove nut and disconnect feed lead from starter solenoid.

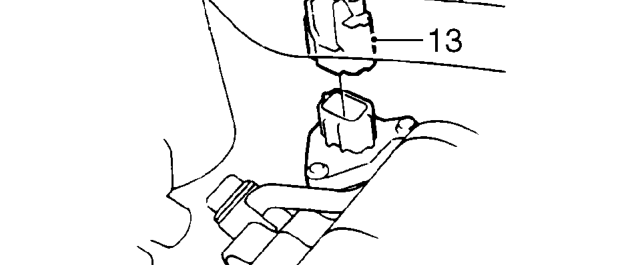

Automatic gearbox & converter - up to 97.5 my – Pull back terminal cover, remove nut and disconnect feed lead from starter solenoid.
  1. Disconnect multiplug from speed sensor.

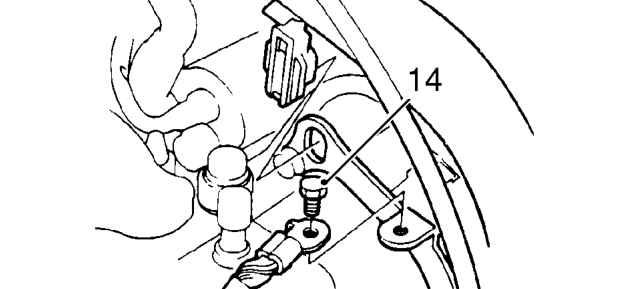

Automatic gearbox & converter - up to 97.5 my – Disconnect multiplug from speed sensor.
  1. Remove bolt securing earth lead to gearbox.
