Automatic gearboxAutomatic gearbox & converter - up to 97.5 my · page 5 of 6
Diagram

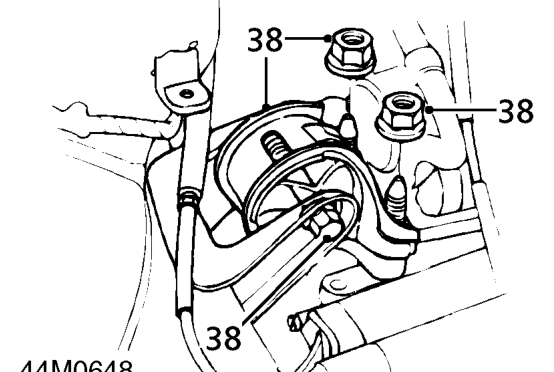

  1. Remove 2 nuts and loosen through bolt securing RH centre mounting to engine and body.
Remove 2 nuts and loosen through bolt securing RH centre mounting to engine and body.

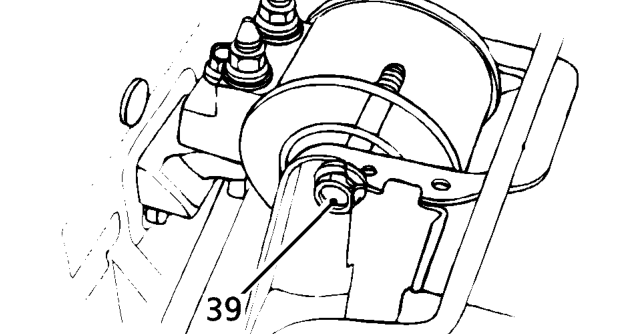

  1. Loosen through bolt securing LH centre mounting to body.
Loosen through bolt securing LH centre mounting to body.
  1. Lower power unit for gearbox to clear body and remove through bolt and RH mounting.

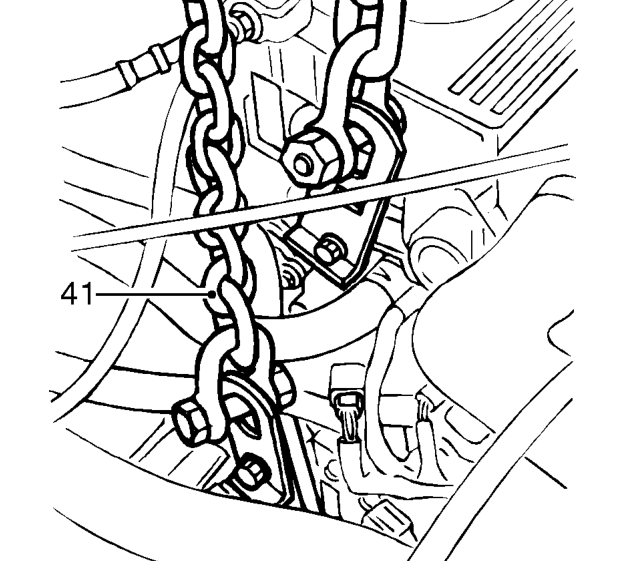

  2. Connect lifting chains and support weight of gearbox.
Connect lifting chains and support weight of gearbox.

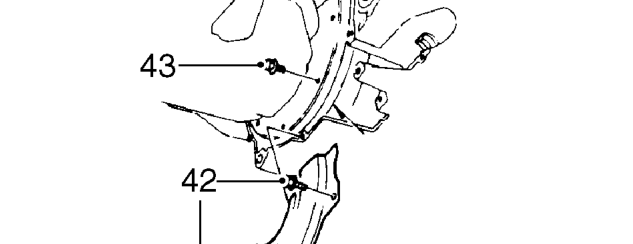

  1. Remove 3 bolts securing drive plate closing panel and remove panel.
  2. Remove 8 bolts securing drive plate to converter.

NOTE: Rotate engine for access to bolts.
