Automatic gearboxAutomatic gearbox & converter - up to 97.5 my · page 4 of 6

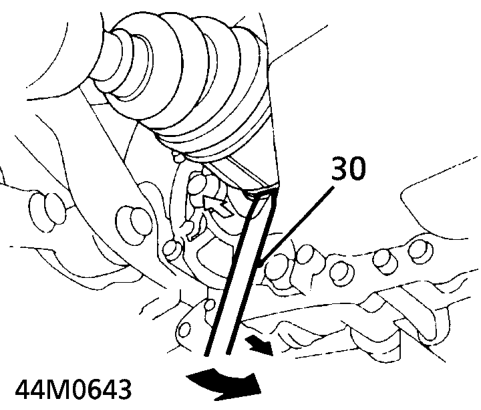

31. Release hub from lower arm and drive shaft from gearbox.

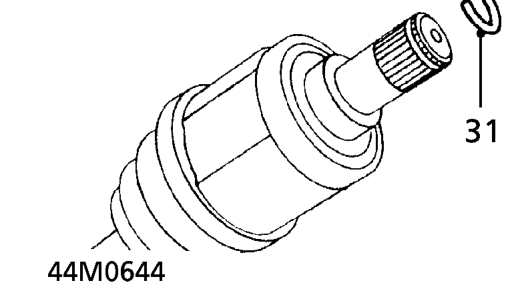

32. Remove and discard circlip from drive shaft.

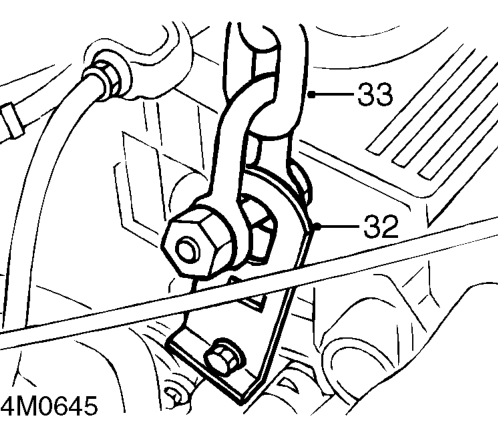

33. Fit lifting bracket to distributor lower rear mounting flange bolt hole. Secure with an 8 mm bolt.
34. Connect lifting chains and support weight of power unit.

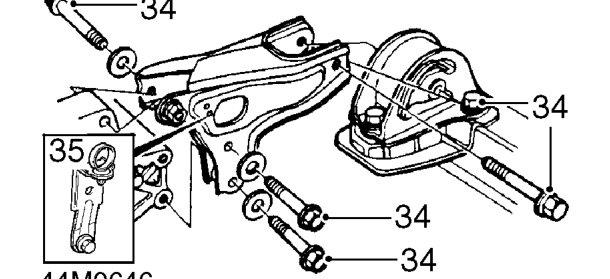

35. Remove 4 bolts rear mounting bracket to engine and mounting rubber.

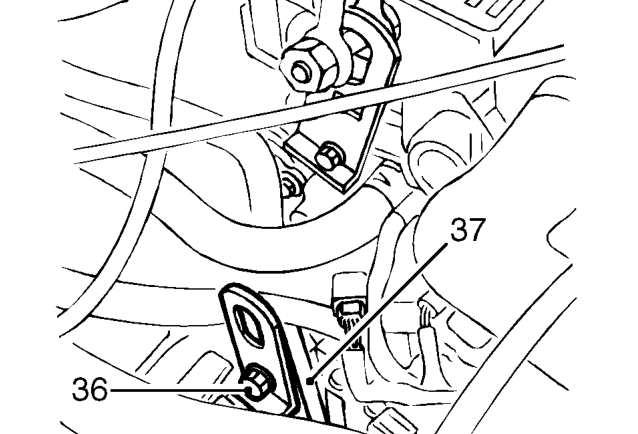

36. Remove screw securing engine harness clip to rear mounting bracket.

37. Remove top fixing bolt from starter motor.
38. Use a suitable spacer and fit a lifting bracket to starter motor top fixing. Fit bolt.

20 Transmission
