Rover 400 Workshop Manual (1995-2000)24 · Brakes
24 · Brakes

Brake light switch - adjust - ’k’ ’l’ and ’t’ series (Brakes)

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Adjustments › Brake light switch - adjust - ’k’ ’l’ and ’t’ series
BrakesBrake light switch - adjust - ’k’ ’l’ and ’t’ series
Diagram

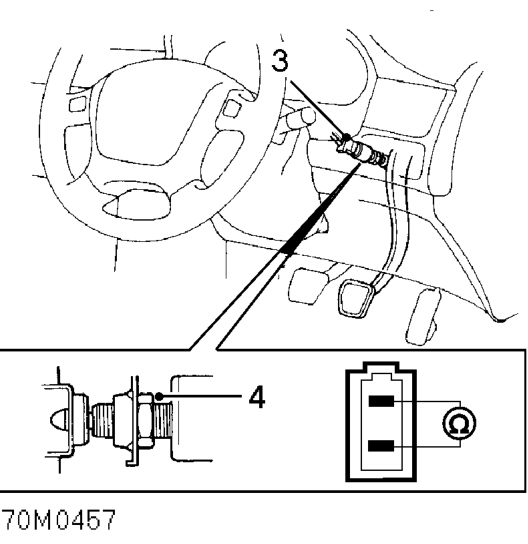

  1. Disconnect multiplug from brake light switch.
  2. Loosen brake light switch locknut.
  3. Connect an ohmmeter across switch terminals.
  4. Screw switch in until an open circuit exists across terminals with pedal released, then screw switch in a further one turn.
  5. Tighten locknut.

CAUTION: Ensure switch does not prevent brake pedal returning fully.

  1. Connect switch multiplug.
  2. Fit fascia lower cover, fit and tighten screws.
  3. Fit driver’s pocket to lower cover.

BRAKE LIGHT SWITCH - ADJUST - ’K’ ’L’ AND ’T’ SERIES

Service repair no - 70.35.41

Brake light switch - adjust - ’k’ ’l’ and ’t’ series – Service repair no - 70.35.41

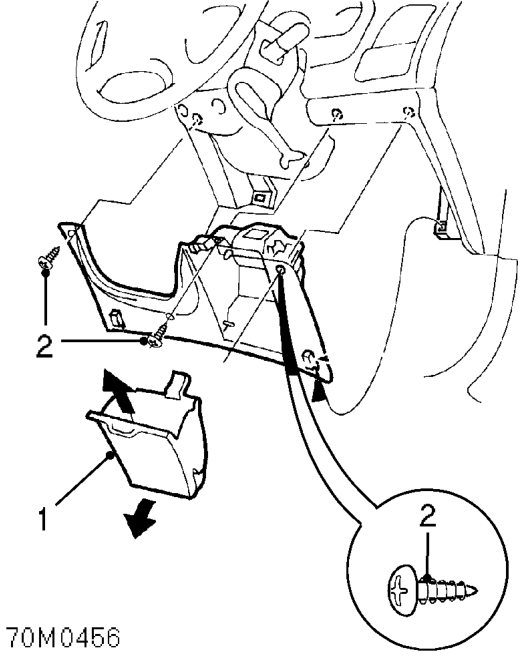

  1. Remove driver’s pocket from fascia lower cover.
  2. Remove 3 screws and remove lower cover.
