Rover 400 Workshop Manual (1995-2000)24 · Brakes
24 · Brakes

Rear brake disc - check (Brakes)

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Adjustments › Rear brake disc - check
BrakesRear brake disc - check

REAR BRAKE DISC - CHECK

Service repair no - 70.10.36

  1. Raise rear of vehicle.

WARNING: Support on safety stands.

  1. Remove road wheel(s).

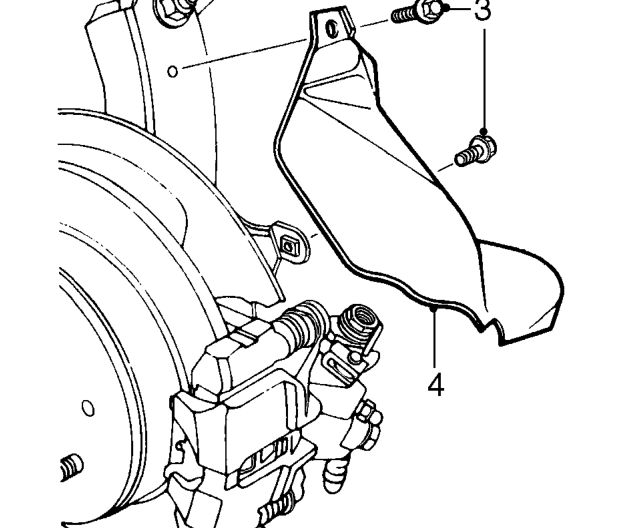

Rear brake disc - check – Remove road wheel(s).
  1. Remove 2 bolts securing caliper shield.
  2. Remove caliper shield.

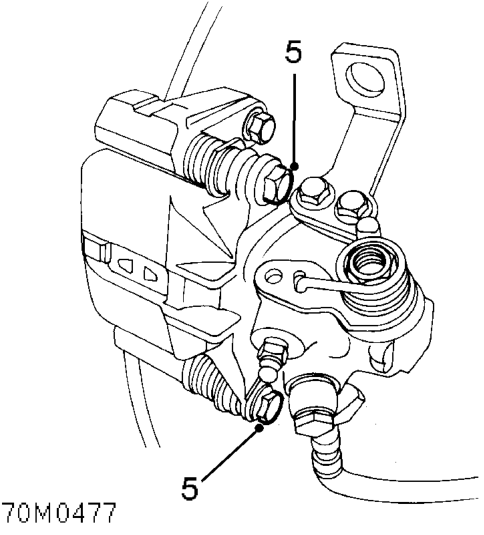

Rear brake disc - check – Remove caliper shield.
  1. Remove 2 bolts securing brake caliper housing to carrier.

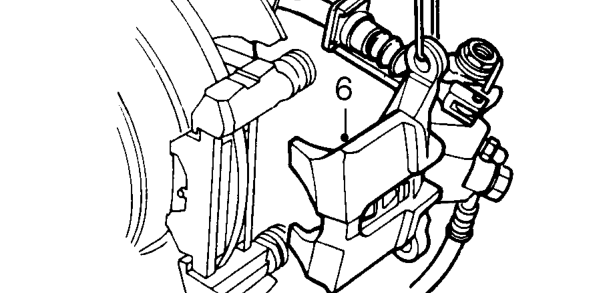

Rear brake disc - check – Remove 2 bolts securing brake caliper housing to carrier.
  1. Release brake caliper housing from carrier and tie aside.

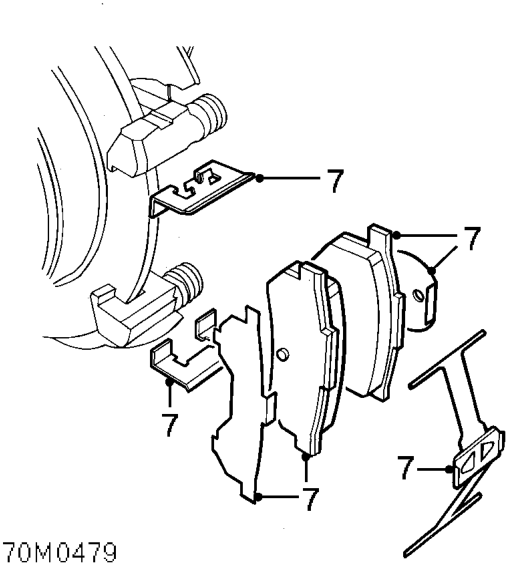

Rear brake disc - check – Release brake caliper housing from carrier and tie aside.
  1. Remove brake pads, shims and pad retainers from carrier.
  2. Inspect disc surface for damage or cracks. Clean disc thoroughly and remove all rust.
