Handbrake cable - adjust - drum brakes

3. Disconnect multiplug from brake light switch.
4. Loosen brake light switch locknut.

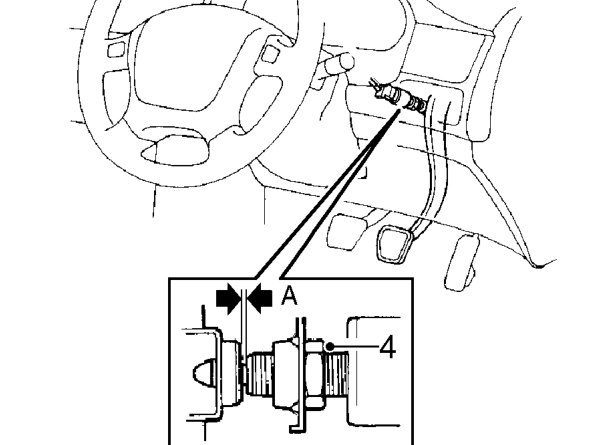

5. Screw switch in until plunger is fully depressed,₁ then back off /₄ turn to give clearance ’A’. Clearance ’A’ = 0.3 mm.
6. Tighten locknut.

CAUTION: Ensure switch does not prevent brake pedal returning fully.

7. Connect switch multiplug.
8. Check operation of brake lights.
9. Fit fascia lower cover, fit and tighten screws.
10. Fit driver’s pocket to lower cover.

HANDBRAKE CABLE - ADJUST - DRUM BRAKES

Service repair no - 70.35.10

Check

1. Apply handbrake lever one notch at a time and count number of notches required to apply the brakes firmly, equivalent to a pull of 20 kgf (44 lbf) applied 50 mm (2 in) from the end of the lever.

DATA: Handbrake lever travel = 7 to 11 notches.

CAUTION: Travel must not be less than 7 notches.

2. Adjust handbrake cable tension if travel is outside limits.
