Front suspension components

FRONT SUSPENSION COMPONENTS

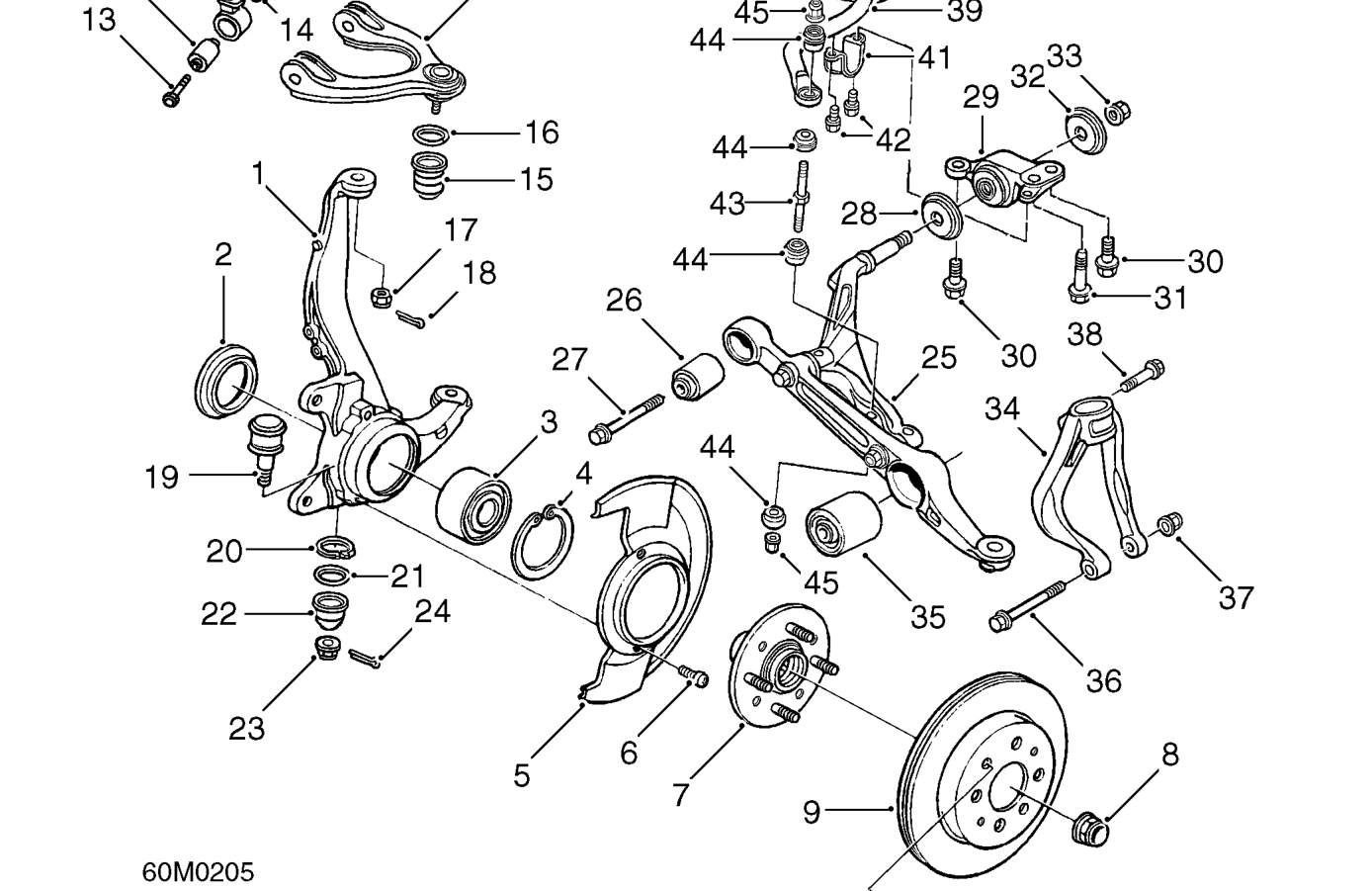

Arms and hub

1. Swivel hub and knuckle
2. Hub ring
3. Hub bearing
4. Circlip - bearing
5. Disc shield
6. Screw - disc shield to hub
7. Drive flange
8. Drive shaft nut - locking
9. Brake disc
10. Screw - brake disc to drive flange
11. Upper arm assembly
12. Bush - upper arm
13. Bolt - upper arm
14. Self-locking nut - M12
15. Boot - upper arm ball joint
16. Spring clip - boot
17. Castle nut - 10 mm
18. Split pin
19. Lower arm ball joint
20. Internal circlip - 40 mm
21. Spring clip - boot
22. Boot - lower arm ball joint
23. Castle nut - M12
24. Split pin

Continued.....
