SuspensionRear damper and spring

Rear damper and spring

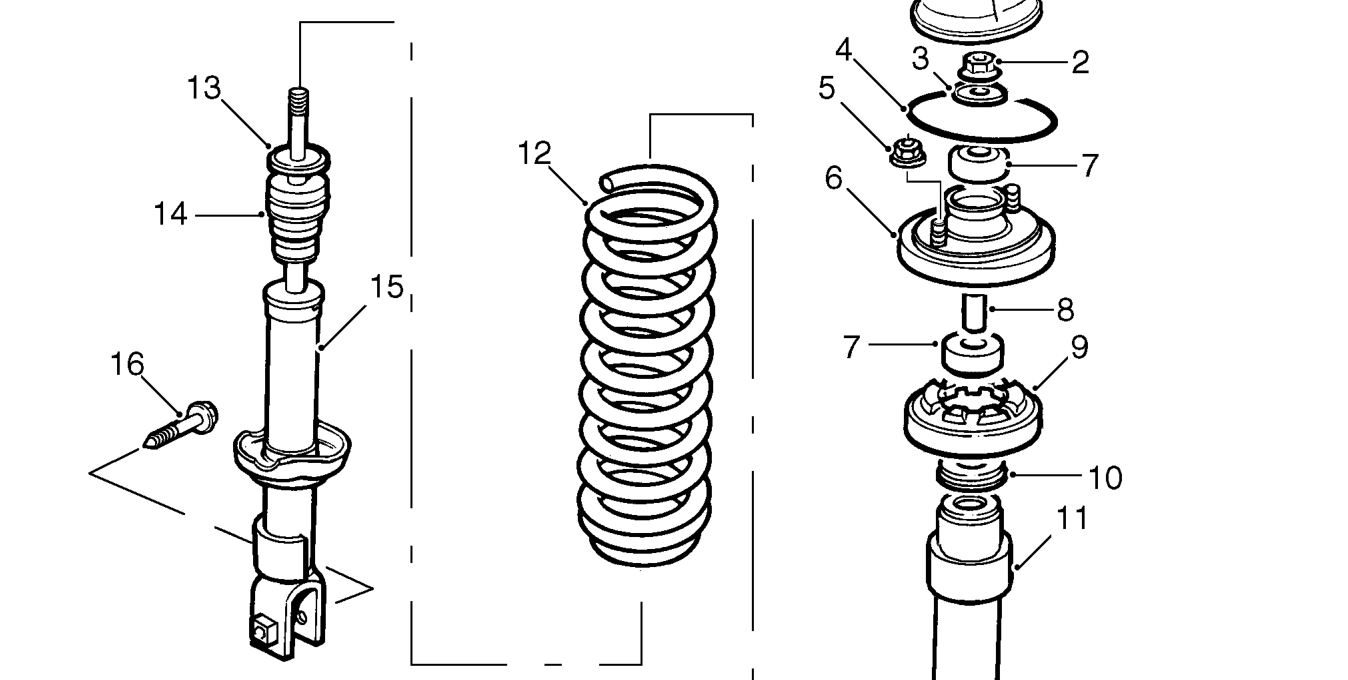

Rear damper and spring
  1. Damper mounting cap
  2. Self locking nut - M10
  3. Damper mounting washer
  4. Damper mounting seal
  5. Locknut - M10 - damper mounting
  6. Damper mounting base plate
  7. Damper mounting rubber
  8. Collar - mounting rubber
  9. Spring mounting rubber
  10. Dust cover plate
  11. Dust cover
  12. Coil spring
  13. Bump stop plate
  14. Bump stop
  15. Damper unit
  16. Bolt - damper to lower arm
