Rear suspension components

REAR SUSPENSION COMPONENTS

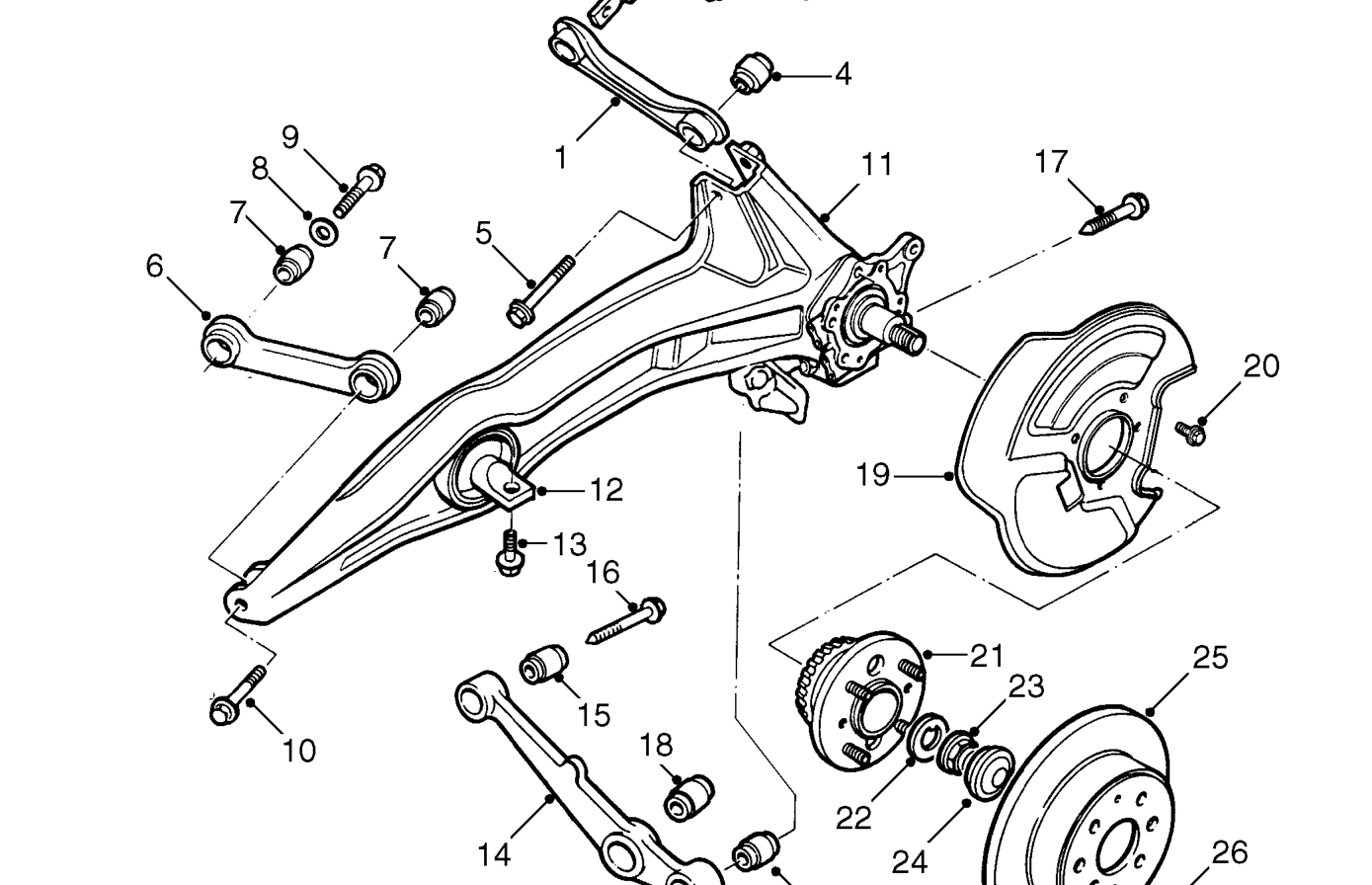

Trailing arm and hub - disc brake

1. Upper arm
2. Inner bush - upper arm
3. Bolt - upper arm bush to body
4. Outer bush - upper arm
5. Bolt - upper arm to trailing arm
6. Compensator arm
7. Compensator arm bush
8. Plain washer - 24x10x2.3 mm
9. Bolt - compensator arm to body bracket
10. Bolt - compensator arm to trailing arm
11. Trailing arm and stub axle
12. Compliance bush - trailing arm
13. Bolt - trailing arm bush to body
14. Lower arm
15. Bush - lower arm
16. Bolt - lower arm to body bracket
17. Bolt - lower arm to trailing arm
18. Bush - damper to lower arm
19. Disc shield
20. Screw - disc shield to hub
21. Rear hub and bearing assembly
22. Washer - locking
23. Hub nut - locking
24. Hub cap
25. Brake disc
26. Screw - disc to hub
