SWITCH - WINDSCREEN WASHER AND WIPER

Service repair no - 84.15.34

Remove

Switch - windscreen washer and wiper – Service repair no - 84.15.34

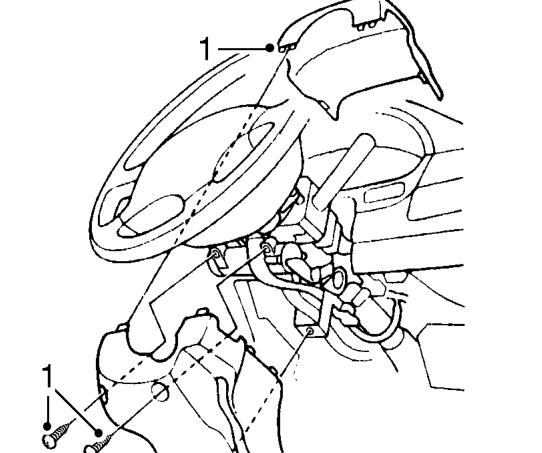

  1. Remove 3 screws, then carefully separate and remove upper and lower sections of column nacelle.
Switch - windscreen washer and wiper – Remove 3 screws, then carefully separate and remove upper and lower sections of column nac

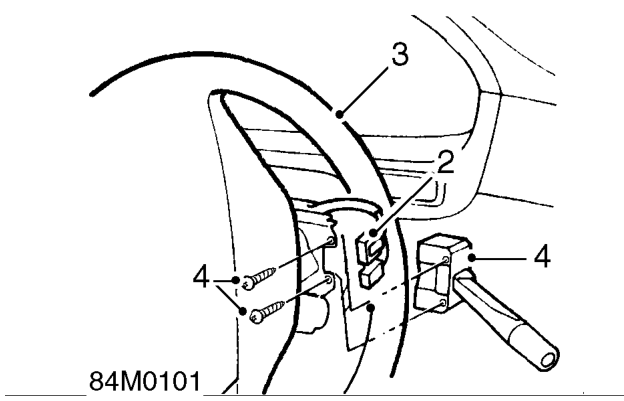

  1. Disconnect multiplugs from washer and wiper switch.
  2. Rotate steering wheel for access to switch securing screws.
  3. Remove 2 screws, depress retaining tag and remove washer and wiper switch assembly.

Refit

  1. Fit washer and wiper switch assembly and secure with screws.
  2. Connect multiplugs to switch.
  3. Fit upper and lower sections of nacelle and secure with screws.
