Rover 400 Workshop Manual (1995-2000)29 · Wipers & washers
29 · Electrical

Wiper motor - rear screen

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Repairs › Wiper motor - rear screen
Wipers & washersWiper motor - rear screen

WIPER MOTOR - REAR SCREEN

Service repair no - 84.35.12

Remove

  1. Remove spindle nut and remove wiper arm.
  2. Remove tailgate trim casing. See BODY, Interior trim components.

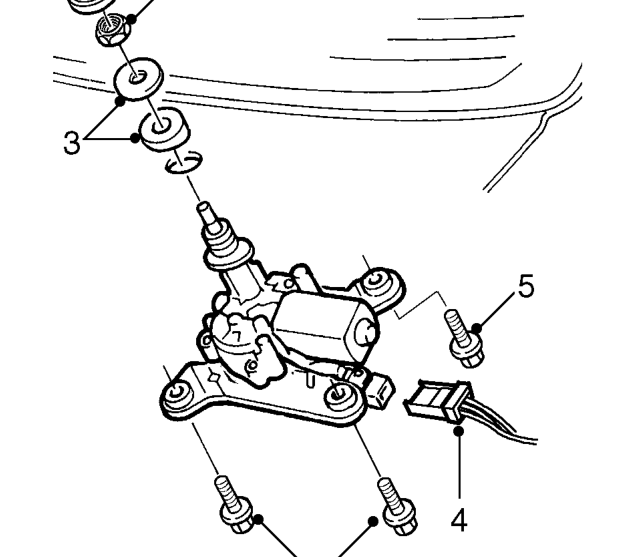

Wiper motor - rear screen – Remove tailgate trim casing. See BODY, Interior trim components.
  1. Remove spindle nut cover, spindle nut, flat washer and rubber seal.
  2. Disconnect tailgate harness from wiper motor.
  3. Remove 3 bolts and remove wiper motor.

Refit

  1. Fit wiper motor and tighten bolts to 8 Nm.
  2. Connect multiplug to wiper motor.
  3. Fit rubber seal, flat washer and tighten nut to 2 Nm.
  4. Fit nut cover.
  5. Fit tailgate trim casing. See BODY, Interior trim components.

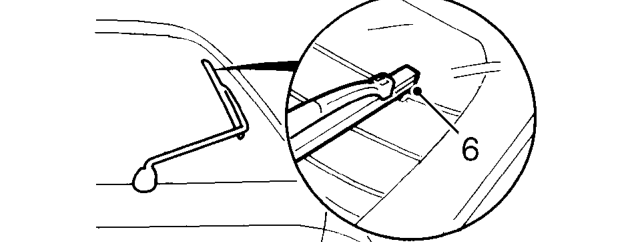

Wiper motor - rear screen – Fit tailgate trim casing. See BODY, Interior trim components.
  1. Fit wiper arm. Align blade to alignment mark on heated rear screen element, fit spindle nut and tighten to 14 Nm.
