Wipers & washersWasher reservoir

WASHER RESERVOIR

Service repair no - 84.10.01

Remove

  1. Remove headlamp. See ELECTRICAL, Repairs.

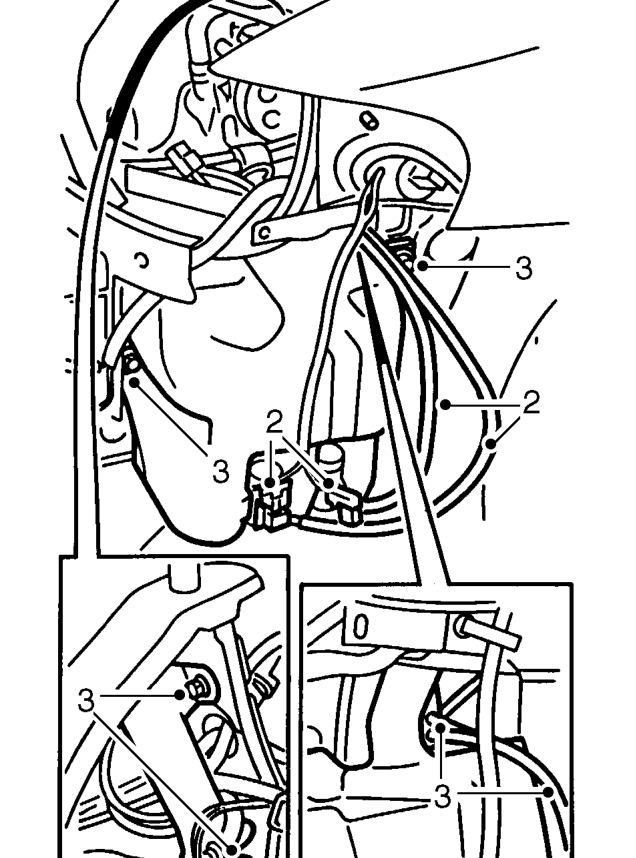

Washer reservoir – Remove headlamp. See ELECTRICAL, Repairs.

’D’ Series illustrated

  1. Disconnect multiplugs and hoses from screen washer pumps.
  2. Remove 4 screws securing reservoir, release hoses and remove reservoir.

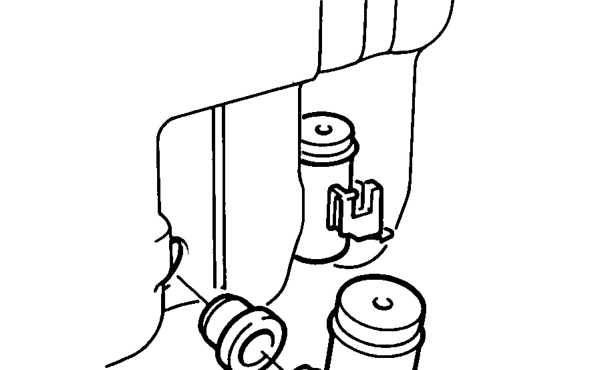

’d’ series illustrated – Remove 4 screws securing reservoir, release hoses and remove reservoir.
  1. Release pumps from reservoir and remove seals.

Refit

  1. Lubricate and fit pump seals to reservoir.
  2. Fit pumps to reservoir.
  3. Position reservoir and secure with screws.
  4. Connect hoses and multiplugs to pumps.
  5. Refit headlamp. See ELECTRICAL, Repairs.
  6. Refill screen washer reservoir.
