Wipers & washersWiper motor - windscreen · page 1 of 2

Refit

  1. Lubricate and fit pump seal to reservoir.
  2. Fit pump to reservoir.
  3. Connect hose and multiplug to pump.
  4. Refit front bumper. See BODY, Exterior fittings.
  5. Refill washer reservoir.

WIPER MOTOR - WINDSCREEN

Service repair no - 84.15.12

Remove

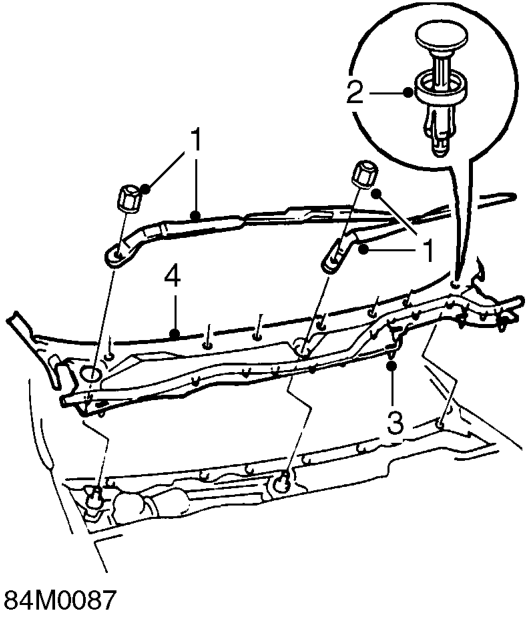

Wiper motor - windscreen – Service repair no - 84.15.12
  1. Remove 2 wiper spindle nuts and remove both wiper arms and blades.
  2. Remove 7 studs securing upper edge of plenum air intake.
  3. Release 9 studs securing lower edge of plenum air intake
  4. Release plenum air intake from bonnet hinges and ’A’ post finishers. Remove plenum air intake.
