Rover 400 Workshop Manual (1995-2000)29 · Wipers & washers
29 · Electrical

Washer jet - windscreen

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Repairs › Washer jet - windscreen
Wipers & washersWasher jet - windscreen

WASHER JET - WINDSCREEN

Service repair no - 84.10.08

Remove

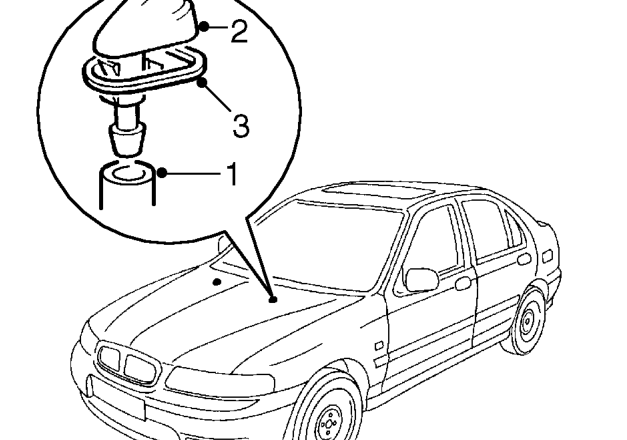

Washer jet - windscreen – Service repair no - 84.10.08
  1. Disconnect tube from washer jet.
  2. Release and remove washer jet from jet seat.
  3. Remove jet seat from bonnet.

Refit

  1. Fit jet seat to bonnet.
  2. Fit jet and connect tube.
  3. Adjust jet so that the inside spray is to the centre of the screen and the outer spray is to the top of the screen.

WASHER PUMP - WINDSCREEN

Service repair no - 84.10.21

Remove

  1. Remove front bumper. See BODY, Exterior fittings.
  2. Position container to catch screen washer fluid.

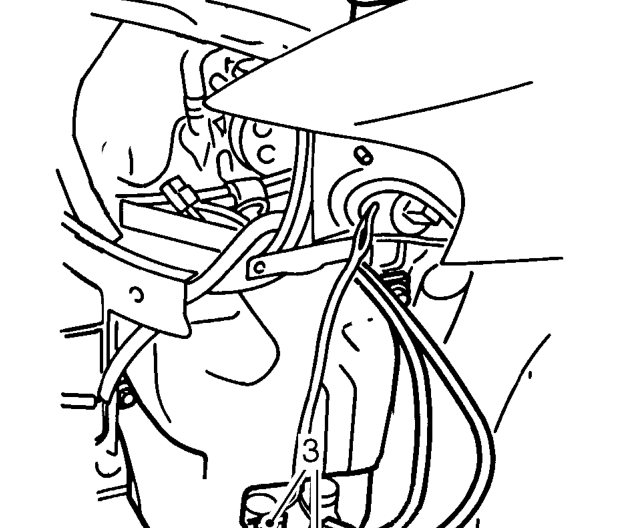

Washer pump - windscreen – Position container to catch screen washer fluid.

’D’ Series illustrated

  1. Disconnect multiplug and hose from windscreen washer pump.

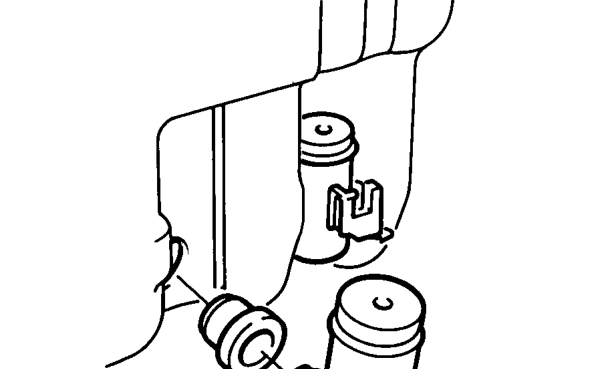

’d’ series illustrated – Disconnect multiplug and hose from windscreen washer pump.
  1. Release pump from reservoir and remove seal.
