Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition08 · Automatic gearbox
08 · Transmission

Low/High Pressure Test

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Fault finding › Low/High Pressure Test
Automatic gearboxLow/High Pressure Test · page 1 of 2

Low/High Pressure Test

  1. Apply the handbrake and chock the rear wheels securely.
  2. Raise the car and support with axle stands.

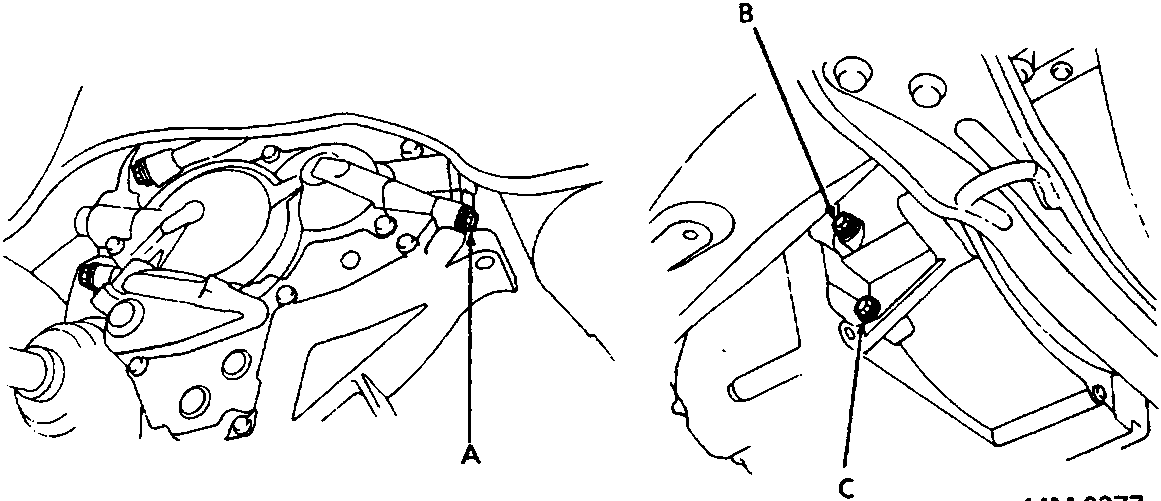

Diagram showing pressure inspection holes on the gearbox, labeled A, B, and C.

A 4th clutch pressure inspection hole
B 2nd clutch pressure inspection hole
C 3rd clutch pressure inspection hole

  1. Attach the gauge set to the appropriate pressure inspection holes.

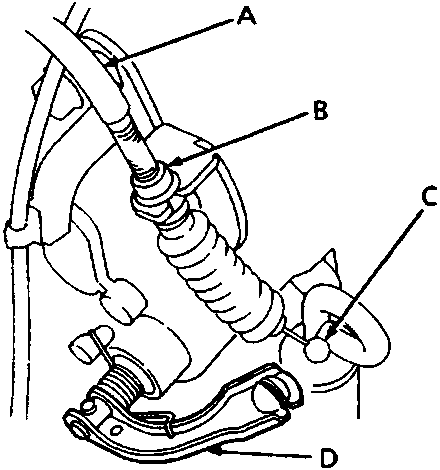

Diagram showing throttle control cable components, labeled A, B, C, and D.

A Throttle control cable
B Lock nut
C Cable end
D Throttle control lever

  1. Disconnect the throttle control cable end from the throttle control lever at the gearbox.

Note: Do not loosen the locknuts; simply unhook the throttle control cable end.
