Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition10 · Differential – manual gearbox
10 · Transmission

Differential Oil Seal Removal

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Repairs › Differential Oil Seal Removal
Differential – manual gearboxDifferential Oil Seal Removal · page 1 of 3

Differential Oil Seal Removal

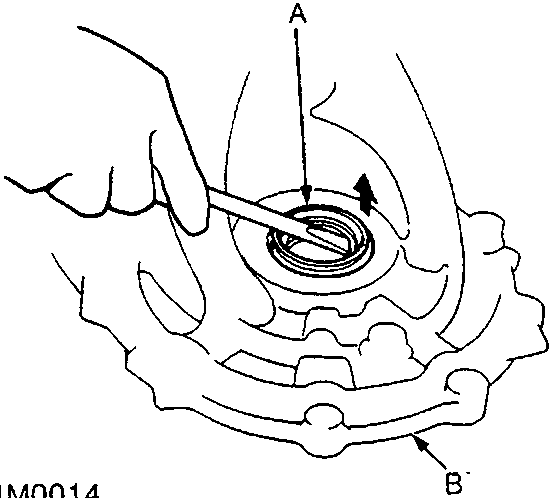

Diagram showing the removal of an oil seal from a transmission housing using a tool, with callouts A and B.
  • A Oil Seal
  • B Transmission Housing

54M0014

  1. Remove the differential assembly.
  2. Remove the oil seal from the transmission housing and discard.

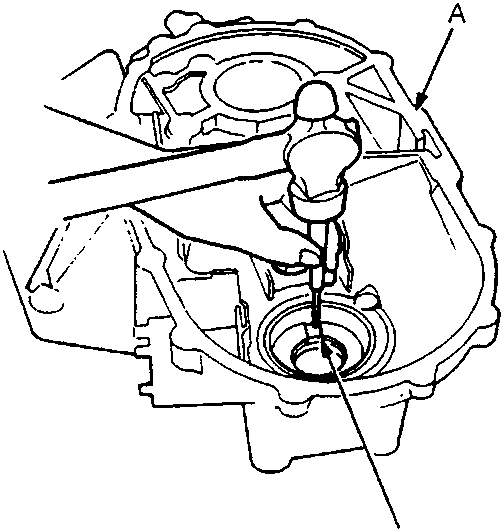

Diagram showing the removal of an oil seal from a clutch housing using a hammer and punch tool, with callouts A and B.
  • A Clutch Housing
  • B Oil Seal

54M0015

  1. Remove the oil seal from the clutch housing and discard.

Differential Bearing Outer Race Replacement

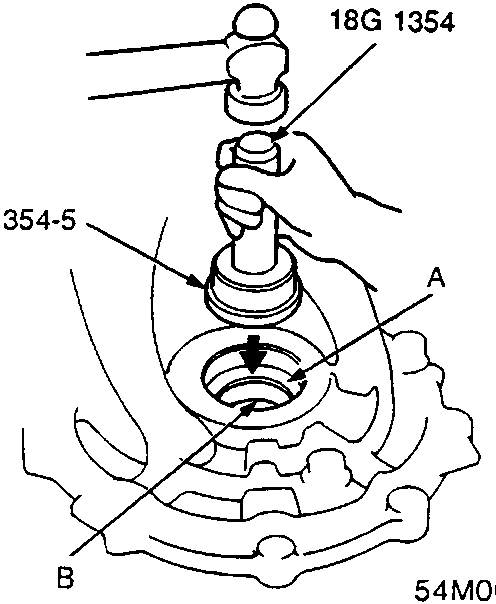

Diagram showing the removal of a bearing outer race from a transmission housing using special tools (18G 1354 and 18G 1354-5), with callouts A and B.
  • A Thrust Shim
  • B Bearing Outer Race

54M0016

Note:

  • The bearing outer race and tapered roller bearing should be replaced as a set.
  • Inspect and adjust the tapered roller bearing preload whenever the tapered roller bearing is replaced.
  1. Remove the oil seals from the transmission housing and clutch housing.
  2. Remove the bearing outer race from the transmission housing using the special tools as shown.
