Drive shaftsRefit · page 2 of 2

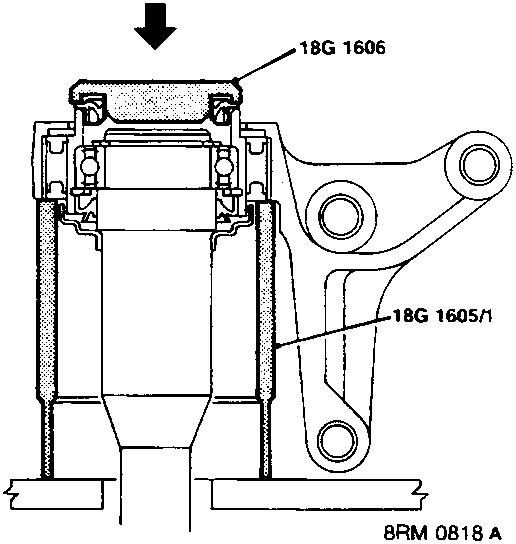

Diagram showing tool 18G 1605/1 supporting a bearing housing while tool 18G 1606 presses in an outer seal, with reference number 8RM 0818 A.
  1. Using tool 18G 1605/1 to support bearing housing, press new outer seal into housing using tool 18G 1606.
  2. Clean end of intermediate shaft and differential seal.
  3. Position shaft assembly to differential. Engage shaft with splines and align bracket.
  4. Fit bearing housing to cylinder block and tighten 3 bolts to 40 Nm.
  5. Fit L.H. drive shaft.
  6. Fit road wheel and tighten nuts to 100 Nm.
  7. Remove stand(s) and lower vehicle.
