Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual18 · Drive shafts
18 · Transmission

Refit

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Repairs › Refit
Drive shaftsRefit · page 1 of 2

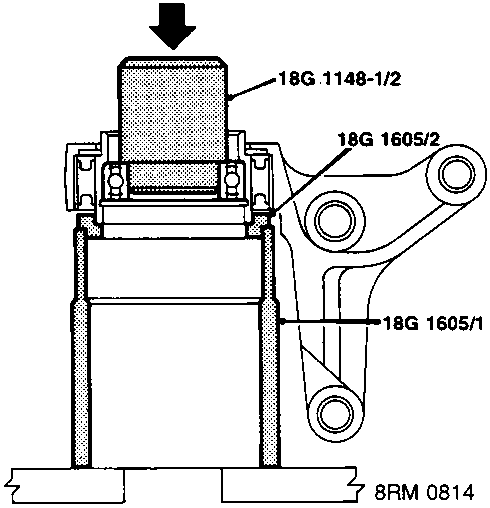

Diagram showing tools 18G 1148-1/2, 18G 1605/2 and 18G 1605/1 fitted to a bearing housing assembly.
  1. Fit tool 18G 1605/2 to tool 18G 1605/1 and place bearing housing on tools as illustrated. Press bearing from housing, using tool 18G 1148 – 1/2.
  2. Inspect rubber inside bearing housing for damage or deterioration and renew as necessary.
  3. Inspect rings on each end of intermediate shaft for damage or distortion and renew if necessary.

Refit

  1. Clean shaft and bearing housing faces.
  2. Clean bearing seal area and circlips.
  3. Smear grease on intermediate shaft splines.

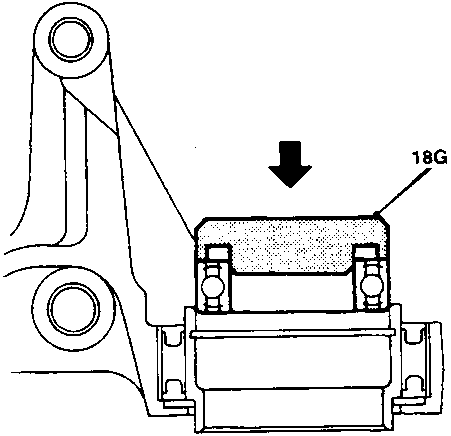

Diagram showing tool 18G 1606 pressing a bearing into a housing.
  1. Use tool 18G 1606 to press new bearing into housing.
  2. Fit circlip with tapered end facing outwards.
  3. Grease the inner seal.

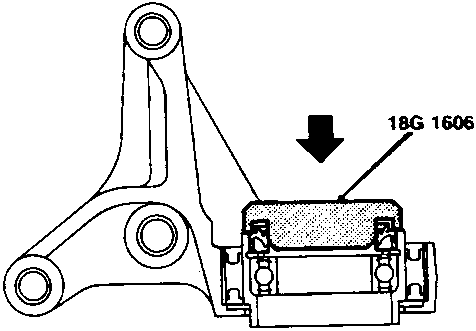

Diagram showing tool 18G 1606 pressing an inner seal into a housing.
  1. Use tool 18G 1606 to press new inner seal into housing.

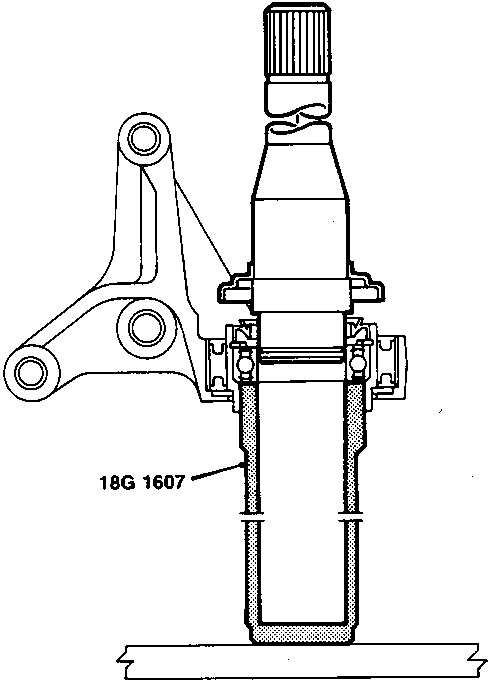

Diagram showing tool 18G 1607 supporting a bearing while an intermediate shaft is pressed into a housing.
  1. Use tool 18G 1607 to support bearing and press intermediate shaft into housing.
  2. Fit circlip with tapered end facing outwards.
