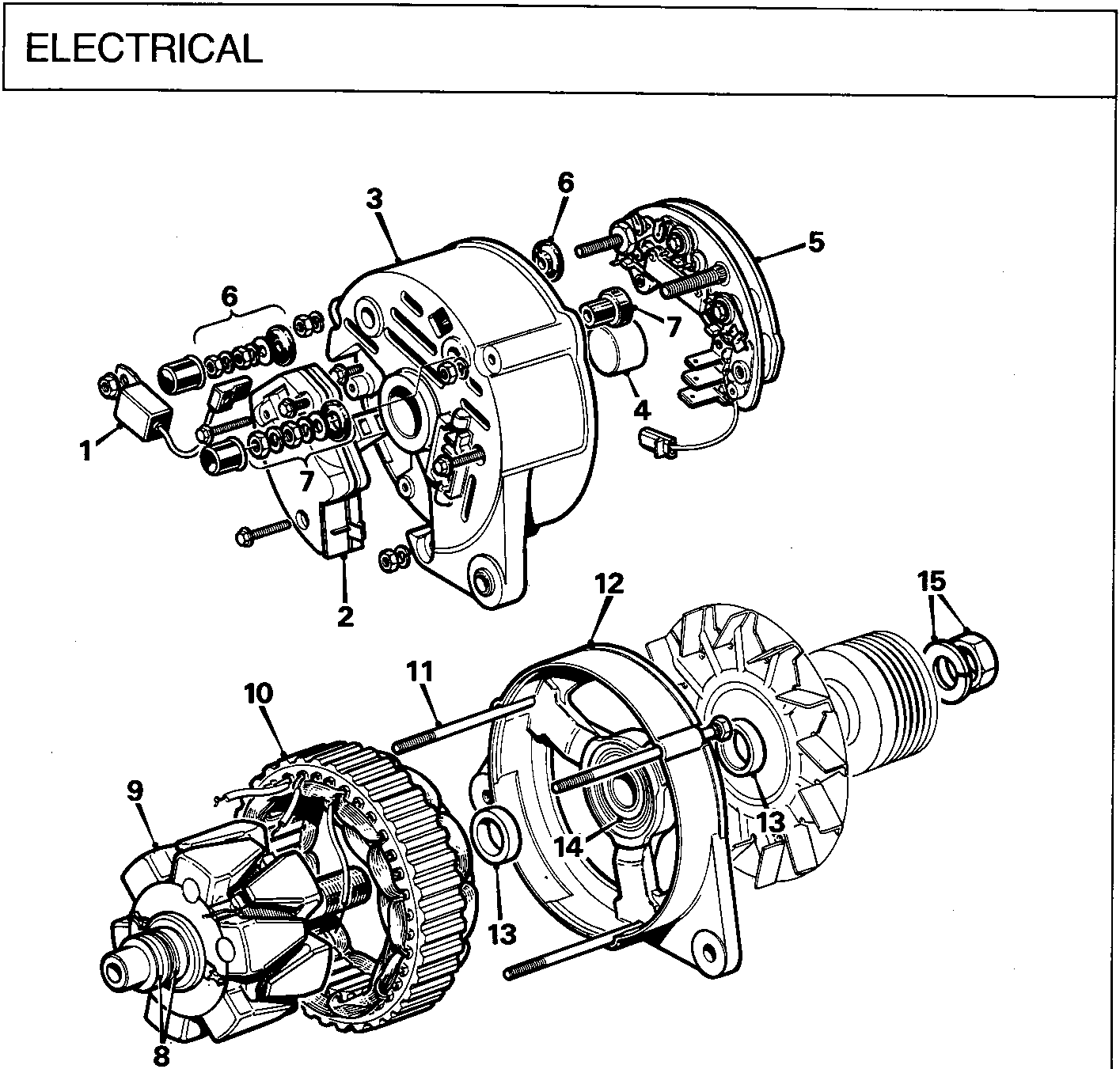

ALTERNATOR COMPONENTS – 1.4 AND 2.0

1. 1. Suppression capacitor
2. 2. Regulator and brushbox
3. 3. Slip ring end-bracket
4. 4. Bearing – slip ring end
5. 5. Rectifier
6. 6. Phase terminal fixings and insulating washers – 8 mm
7. 7. Main terminal fixings and insulating washers – 10 mm
8. 8. Slip rings
9. 9. Rotor assembly
10. 10. Stator
11. 11. Through bolts
12. 12. Drive end-bracket
13. 13. Spacers
14. 14. Bearing – drive end-bracket
15. 15. Pulley nut and spring washer
