Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual26 · Electrical
26 · Electrical

Electrical (Alternator components – 1.6): Description and operation

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Description and operation › Alternator components – 1.6
ElectricalAlternator components – 1.6

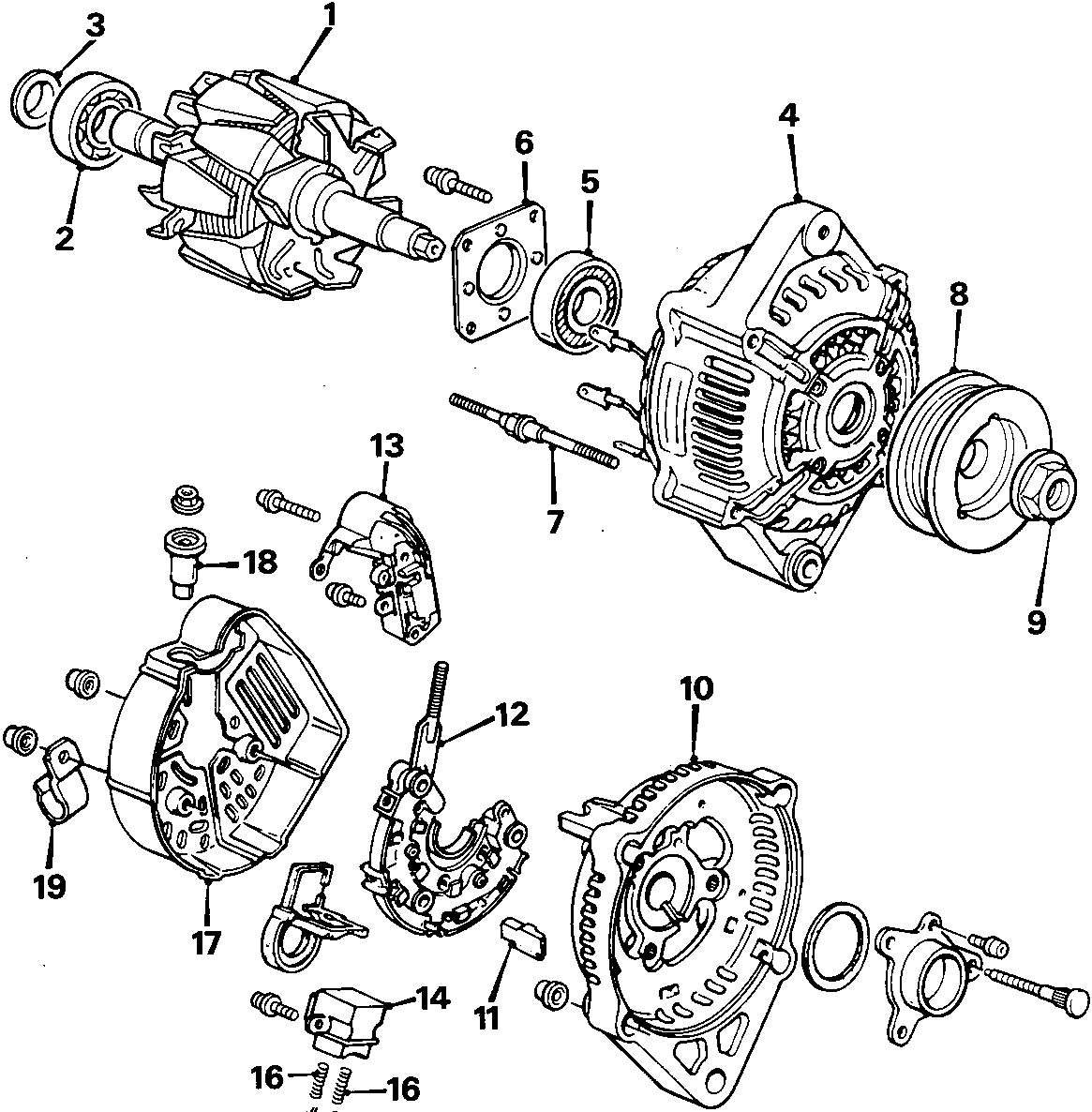

Exploded view diagram of alternator components for 1.6 engine, showing numbered parts including rotor assembly, stator, bearings, rectifier, voltage regulator, pulley, and housing.

8RM 0426

ALTERNATOR COMPONENTS – 1.6

  1. Rotor assembly
  2. Rear bearing
  3. Spacer ring
  4. Stator assembly
  5. Front bearing
  6. Bearing retainer
  7. Through bolt
  8. Pulley
  9. Locknut
  10. Rear housing
  11. Insulator sleeve
  12. Rectifier
  13. Voltage regulator
  14. Brush holder
  15. Brush
  16. Brush spring
  17. End cover
  18. Terminal insulator
  19. Harness clip
