ElectricalStarter motor components – 2.0

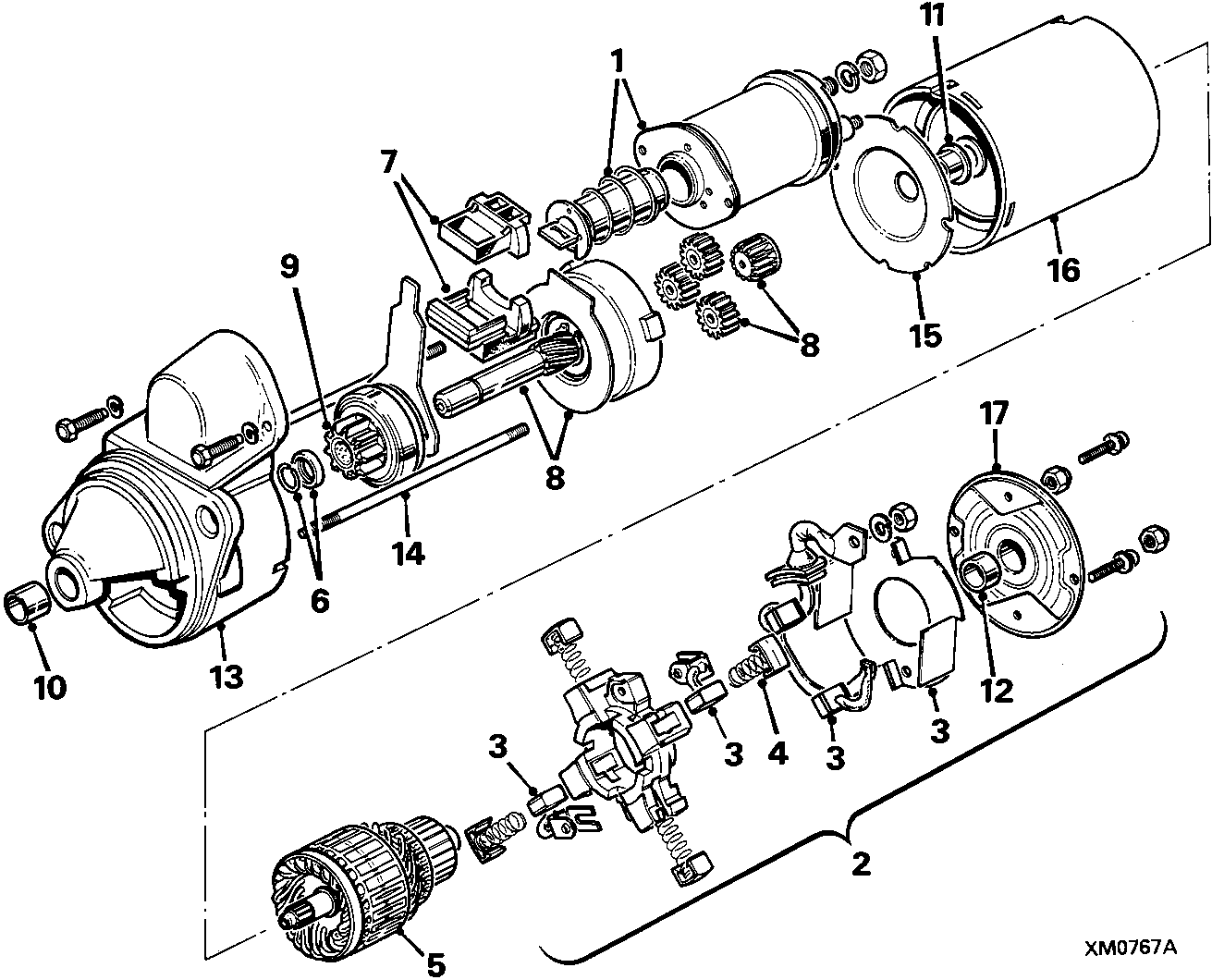

Exploded view diagram of the starter motor components, showing the solenoid, armature, drive assembly, commutator end bracket, and field coil yoke with numbered callouts 1 through 17.

STARTER MOTOR COMPONENTS – 2.0

  1. Solenoid and plunger
  2. Commutator end bracket assembly
  3. Brushes
  4. Brush spring
  5. Armature
  6. Jump ring and thrust collar
  7. Pivot and grommet
  8. Drive shaft, bearing bracket and gears
  9. Drive assembly
  10. Bush – drive end – bracket
  11. Bush – intermediate bracket
  12. Bush – commutator end – bracket
  13. Drive end – bracket
  14. Through bolts
  15. Intermediate bracket
  16. Field coil yoke
  17. Commutator end – bracket
