Description and operation › Starter motor components – 1.4
ElectricalStarter motor components – 1.4

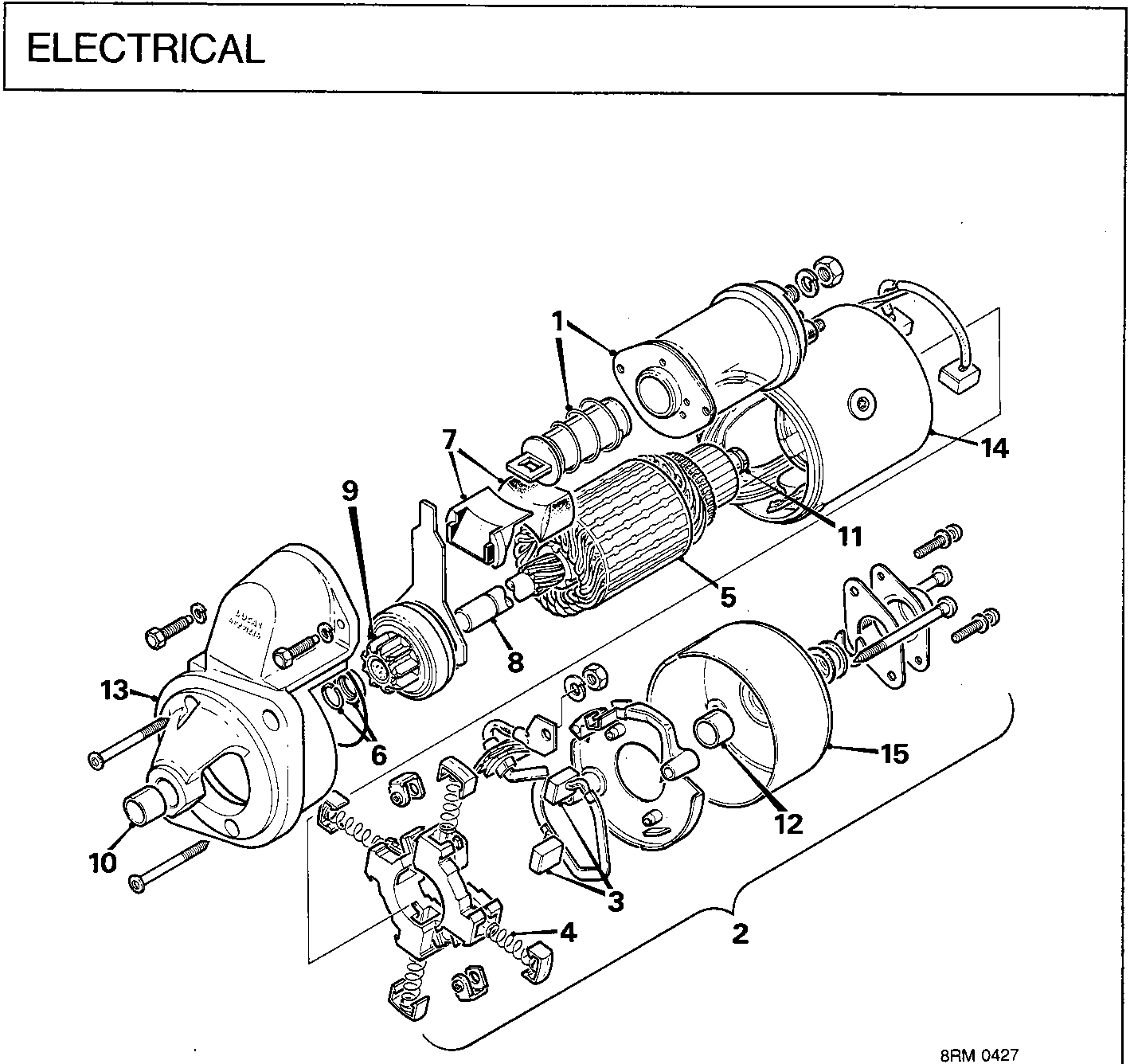

Exploded view diagram of a starter motor showing 15 numbered components including solenoid, armature, drive assembly, and end brackets

STARTER MOTOR COMPONENTS – 1.4

  1. Solenoid and plunger
  2. Commutator end – bracket assembly
  3. Brushes
  4. Brush spring
  5. Armature
  6. Jump ring and thrust collar
  7. Pivot and grommet
  8. Drive shaft
  9. Drive assembly
  10. Bush – drive end – bracket
  11. Bush – intermediate bracket
  12. Bush – commutator end – bracket
  13. Drive end – bracket
  14. Field coil yoke
  15. Commutator end – bracket
