Starter motor components – 1.6 (Electrical)

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Description and operation › Starter motor components – 1.6
ElectricalStarter motor components – 1.6

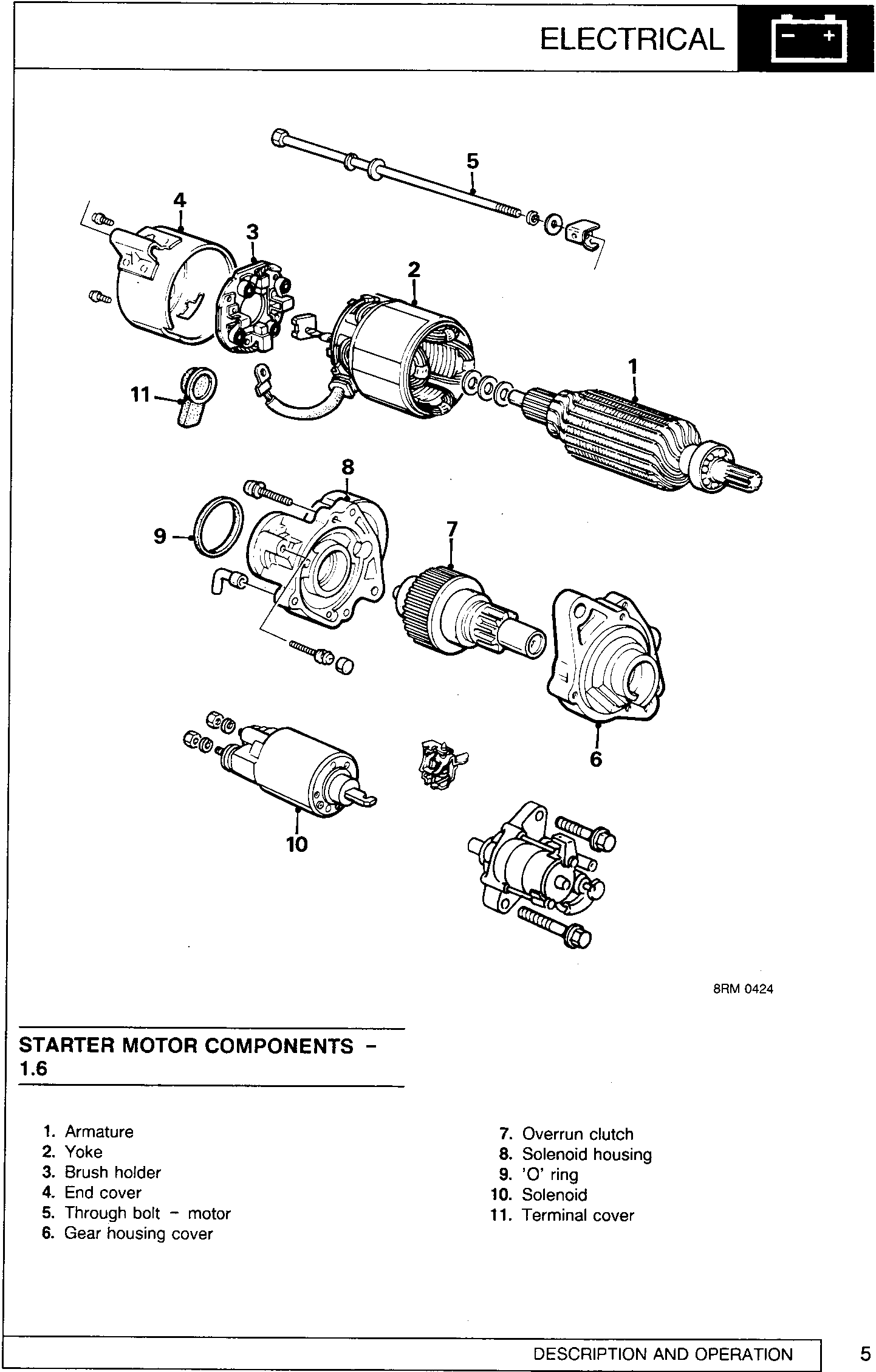

Exploded view diagram of a starter motor showing 11 numbered components including armature, yoke, brush holder, end cover, through bolt, gear housing cover, overrun clutch, solenoid housing, O ring, solenoid, and terminal cover.

8RM 0424

STARTER MOTOR COMPONENTS – 1.6

  1. Armature
  2. Yoke
  3. Brush holder
  4. End cover
  5. Through bolt – motor
  6. Gear housing cover
  7. Overrun clutch
  8. Solenoid housing
  9. 'O' ring
  10. Solenoid
  11. Terminal cover
