Leon Mk1

Differential: adjusting

Differential: adjusting

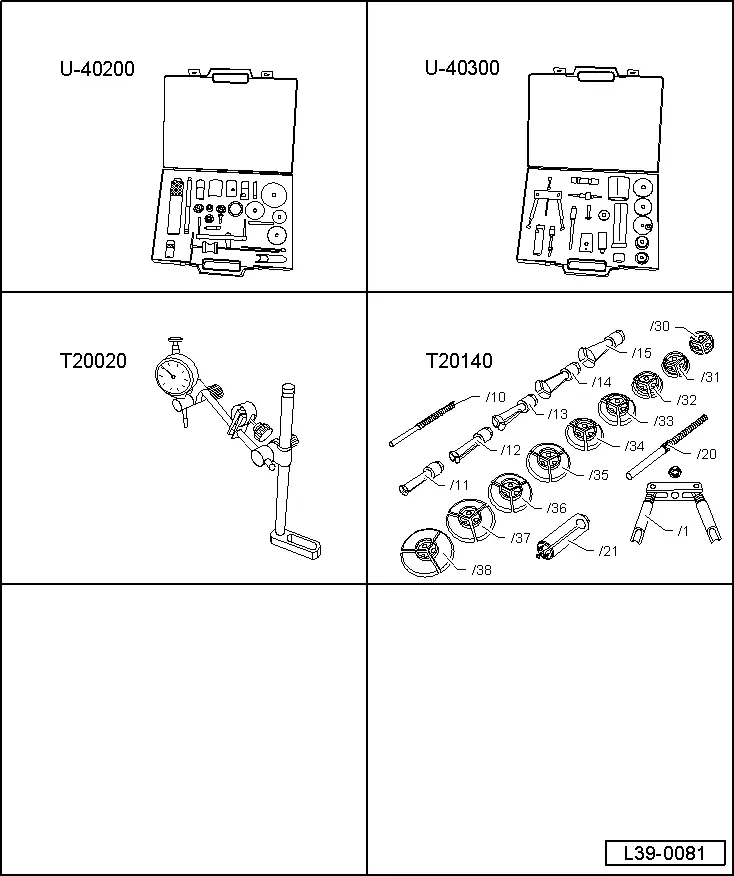

Special tools and workshop equipment required
t  Bracket -T20020-
t  Kit -T20140-
t  Kit -U-40200 A-
t  Kit -U-40300-

Adjust the differential when one of the following elements has been replaced:
t  Gearbox casing
t  Torque converter casing
t  Differential
t  Differential roller bearings
Prerequisites:
l  Remove the planet gears from the ATF pump, including the large planet → Chapter, Planet gears: dismantling and assembling
l  Remove the engine shaft → Chapter, Planet gears: dismantling and assembling
