Leon Mk1

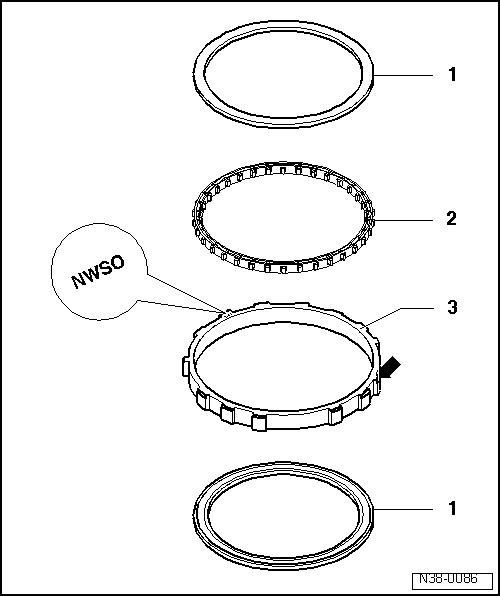

Free sprocket: general fitting diagram |
1 - | Thrust washer |
q | Place on the cage → Item |
q | The smooth face outwards |
2 - | Cage with securing elements |
q | Fit to the outer ring of the free sprocket → Anchor |
3 - | Outer ring for free sprocket |
q | Installation position: The letters and the bevel -arrow- should be facing the satellite holder |
