SEAT Leon Mk101 · Power transmission
01 · Transmission

Gear selection mechanism

Make
SEAT
Model
Leon Mk1
Section
OA4 5-speed manual gearbox › Gearbox mechanics,operation, construction,diff. › Gear selection mechanism
Power transmissionGear selection mechanism

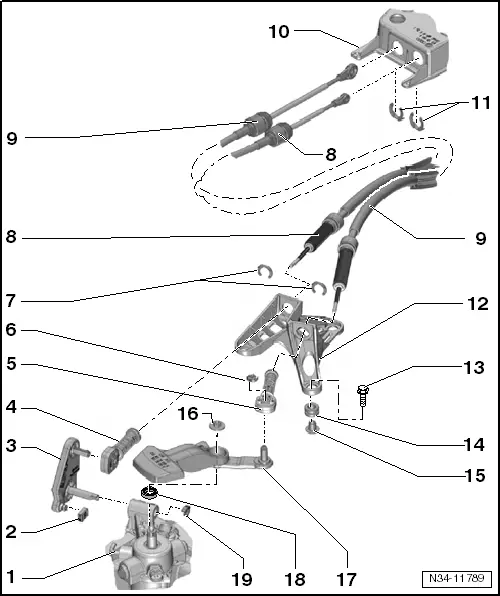

Selector lever cable (counterhold of the and relay lever made of plastic): Assembly overview
Gear selection mechanism – SEAT Leon Mk1  Note
t  Lubricate bearing positions and sliding surfaces.
t  Allocate grease using → Electronic parts catalogue (ETKA).
t  Do not kink selector cables.
Gear selection mechanism – SEAT Leon Mk1
1 - Selector shaft with selector shaft cover
2 - Runner
3 - Idler rod
q   Made of plastic
q   For correct version, refer to → Electronic spare parts catalogue
q   Installation position → Fig.
q   After installing, adjust selector mechanism → Chapter
q   Remove and fit the idler rod together with the cable fastener → Chapter
4 - Cable attachment
q   After installing, adjust selector mechanism → Chapter
q   To secure selection control cable to idler rod
q   Do not mix up. The element fastening the cable selector to the idler rod and fastening the connector cable to the selector rod are different.
q   Remove relay lever → Chapter
q   Lock in the idler lever → Chapter
q   Allocation → Fig.
5 - Cable attachment
q   After installing, adjust selector mechanism → Chapter
q   Secures gear selector cable to gearbox selector lever
q   Do not mix up. The element fastening the cable selector to the idler rod and fastening the connector cable to the selector rod are different.
q   Allocation → Fig.
6 - Retainer washer
q   Always replace.
7 - Retainer washer
q   Always replace.
q   Take care not to damage selector cables when removing.
8 - Selection control cable
q   Connect to cable end-piece → Item
q   Installation position → Chapter
9 - Gear selector cable
q   Connect to cable end-piece → Item
q   Installation position → Chapter
10 - Lever protection box
11 - Retainer washer
q   Always replace.
q   Take care not to damage selector cables when removing.
12 - Cable support bracket
q   Made of plastic
13 - Hexagon bolt, 20 Nm
q   3 off
q   For cable support bracket
14 - Grommet
q   3 off
q   Cable support bracket mounting on gearbox
15 - Spacer
q   3 off
16 - Hexagon nut → Item
17 - Gearbox selector lever
q   Installing → Fig.
q   Installation position → Fig.
q   After installing, adjust selector mechanism → Chapter
18 - Seal
q   replace → Item
19 - Wiring clip
q   ⇒ Relay lever with clip → Fig.
