Summary of components

  Note

t	If the front axle is damaged as a result of an accident certain steering components must be replaced → Chapter

t	Repairs on the steering gear are not foreseen. If there is a complaint about the steering gear, it must be replaced.

t	Replace the self-locking screws and nuts.

t	Welding and straightening of the steering components is not allowed.

t	Only use steering gear grease, spare part number → Chapter

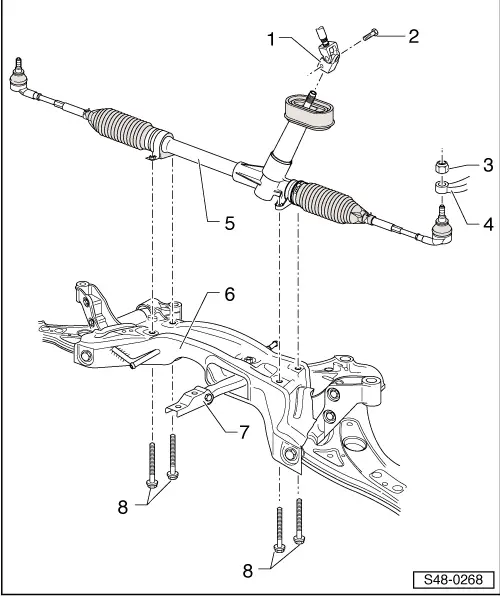

1 -	Universal joint

q	of steering column

2 -	Screw, 20 Nm + 90°

q	replace after each removal

3 -	Self-locking hexagon nut, 20 Nm + 90°

q	replace after each removal

4 -	Steering-knuckle arm (of the wheel-bearing housing)

5 -	Steering gear

6 -	Assembly carrier

q	with impression (as shown in Figure), only if the front exhaust pipe is fitted below the engine-gearbox assembly carrier

q	with impression (not shown), only if the front exhaust pipe is fitted below the engine-gearbox assembly carrier

7 -	Pendulum support

q	The shape of the hinged bracket depends on the gearbox

8 -	Screw, 50 Nm + 90°

q	replace after each removal
