Removing and installing bracket Special tools and workshop equipment required t  Pliers -T10005- Removing –  Disconnect the earth strap from the battery with the ignition off. –  Remove air filter → Engine; Rep. Gr.23

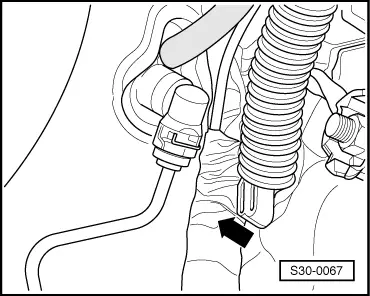

–  Remove bracket from the body -direction of the arrow-. –  Pull wiring loom towards the front.

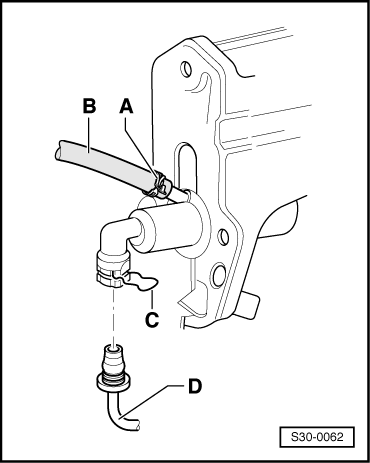

–  Release and shut off tubing -A- to the brake fluid reservoir. –  Pull locking clip -B- out of the master cylinder. –  Release and cut the tube-hose line -C- out of the master cylinder. –  Remove the storage area on the driver's side → Body Work; Rep. Gr.70.   Note Clutch pedal bracket is removed together with master cylinder. Before removing first separate the master cylinder from the clutch pedal.

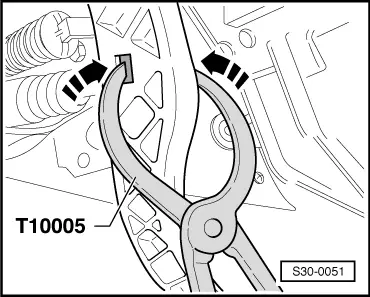

Unlock the actuating rod/master cylinder from the clutch pedal as follows: –  Insert pliers -T10005- in the clutch pedal recesses. –  Press together support and separate the clutch pedal from the master cylinder. –  Remove clutch pedal switch, if provided → Item.

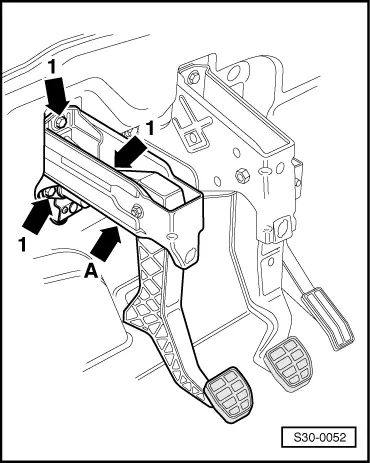

–  Unscrew the nuts -arrows 1- and remove the clutch controls -arrow A- together with the master cylinder. Install Installation is performed in the reverse order. Pay attention to the following points:

–  The support -A- must be located on the actuating rod -B- of the master cylinder. –  To click in the support push the clutch pedal towards the front wall -direction of the arrow- and make sure it catches correctly. –  Bleed the clutch system → Chapter. –  Install air filter → Engine; Rep. Gr.23 .

Tightening torque

Component		Nm
Mounting bracket on the body		→ Chapter
Master cylinder to body		→ Chapter
