Setting output shaft
Setting output shaft
(Determine adjusting washer for drive shaft)
Special tools and workshop equipment required
t  Gauge block plate -MP 3-405/17 -
t  Universal dial gauge holder -MP 3-447-
t  Bolts M8 and M10 -3114/2-
The drive shaft must be reset, if it has been replaced:
t  Output shaft
t  Clutch housing
or the
t  Tapered-roller bearing
Setting overview: → Chapter
  Note
New tapered-roller bearings for the output shaft are low friction. Correct setting of the bearing preload is only possible by determining the thickness of the adjusting washer.
–  Press in outer ring/tapered-roller bearing small in the clutch housing with a 0.65 mm thick adjsuting washer up to the stop → Chapter
–  Insert output shaft and tighten nuts for the bearing support to tightening torque → Chapter.

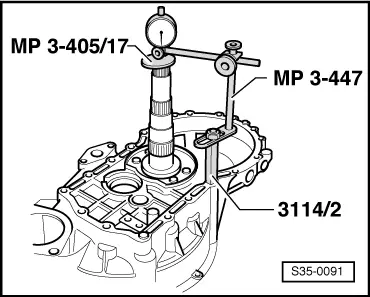

–  Insert dial gauge (3 mm measuring range) and set to “0” with a 1 mm bias.
–  Move the output shaft up and down, read off and write down the clearance on the dial gauge. (Example: 0.30 mm).
  S35-0091
