Plastic relay lever as of 06.07 (Fabia II, Roomster) Removing l  Gearbox shift lever is located in the neutral position. l  Before removing the gearbox shift lever the cable lock must be separated from the selector cable in order to avoid damage to the selector cable.

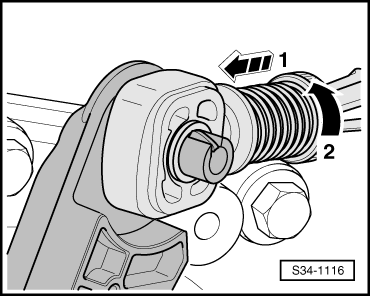

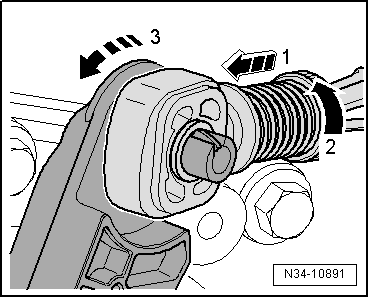

–  Pull forward the locking mechanism as far as the stop in -direction of arrow 1-, then lock by turning to the left in -direction of arrow 2-.

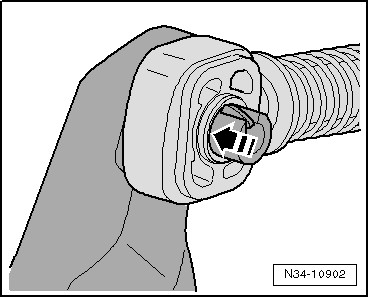

–  Press the relay lever towards the front in the -direction of arrow 3-.

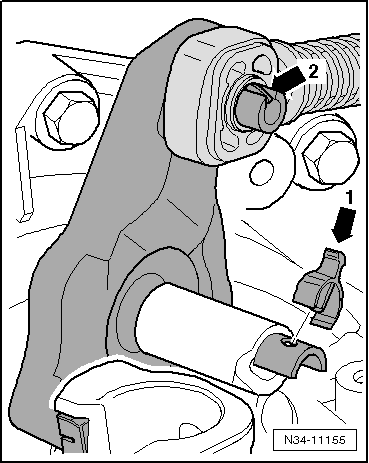

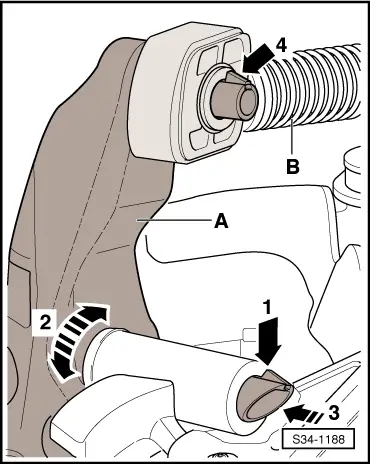

Relay lever with a catch –  Carefully press down the pin detent -arrow 1- as far as the stop. –  Carefully take the relay lever -A- together with the cable lock -B- out of its bearing point.

Relay lever with clip –  Remove clip -arrow°1-. –  Carefully take the relay lever together with the cable lock out of its bearing point. Continued for all versions l  Only remove cable lock on removed relay lever → Fig.. Install Diagram not available  Note Before installing, grease bearing points and friction surfaces with grease -G 000 450 02-. –  Press cable lock onto the relay lever → Fig.. –  Insert relay lever together with cable lock up to the stop in its bearing point. l  The cable lock must be located behind the catch -arrow 2-. l  The pin detent or the clip -arrow 1- secures the relay lever.

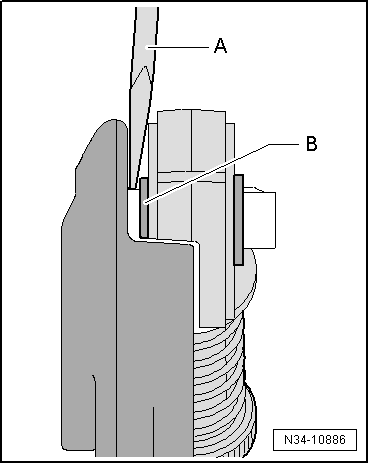

Lever off cable lock for selector cable from plastic relay lever l  Relay lever removed. –  Position a cross-head screwdriver -A- between bushing -B- and relay lever.

Press on cable lock l  Relay lever removed. l  The cable lock must only be pressed onto the bushing -arrow-. l  Cable lock must move freely on relay lever. l  The cable lock must be located behind the pin detent → Anchor.
