Protective strips

Make

Skoda

Model

Superb

Section

Body Work › Exterior equipment › Protective strips

BodyProtective strips

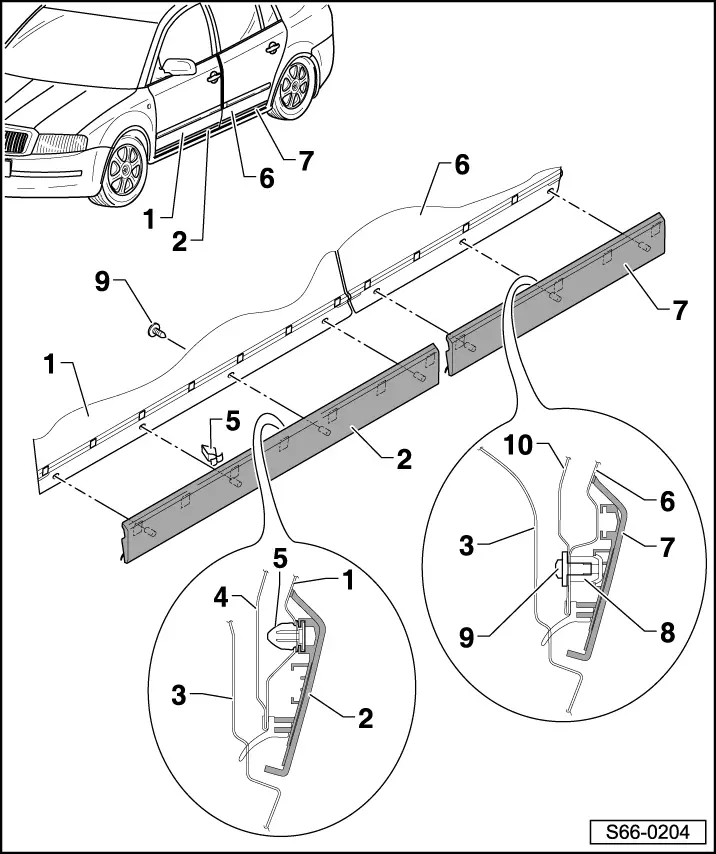

Summary of components of cover for front or rear door

1 -	Door outer panel (front door)

2 -	Cover for front door

q

Removing:

–	Release screws Pos. 9.

–	Unclip clips Pos. 5 from the door outer panel (front door) Pos. 1.

–	Remove cover for front door.

q	Installing:

Installation is carried out in the reverse order. Pay attention to the following:

–	Check if the clips Pos. 5 are damaged.

–	Damaged clips must be replaced.

3 -	Outside side part

4 -	Inside door panel (front door)

5 -

Clip

q	hung in the cover for the front or rear door

6 -	Door outer panel (rear door)

7 -	Cover for rear door

q

Removing:

–	Release screws Pos. 9.

–	Unclip clips Pos.5 from the door outer panel (rear door) Pos. 6.

–	Remove cover for rear door.

q	Installing:

Installation is carried out in the reverse order. Pay attention to the following:

–	Check if the clips Pos. 5 are damaged.

–	Damaged clips must be replaced.

8 -	Straddling dowel

9 -

0.5 Nm

10 -	Inside door panel (rear door)
