Trailer coupling

Make

Skoda

Model

Superb

Section

Body Work › Exterior equipment › Trailer coupling

BodyTrailer coupling

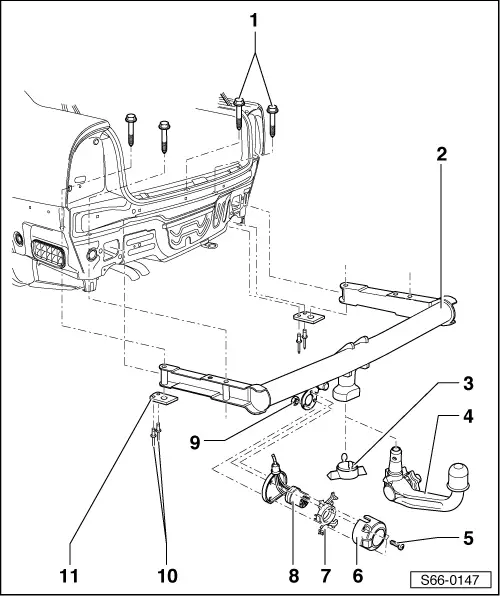

Summary of components trailer coupling

1 -

60 Nm

2 -	Trailer coupling frame

q

Removing:

–	Remove trailer arm Pos. 4.

–	Position blind plug Pos. 3.

–	Remove the rear bumper → Chapter.

–	Remove socket Pos. 6.

–	Remove bracket Pos. 7.

–	Pull the electrical wiring Pos. 8 through the trailer coupling frame.

–	Remove screws Pos. 1.

–	Remove trailer coupling frame from the vehicle.

q	Installing:

Installation is carried out in the reverse order.

3 -	Blind plug

q	insert in trailer arm hole

4 -	Trailer arm

q

Removing:

–	Open lock on control handwheel.

–	Push out control handwheel and turn to the front.

–	Remove trailer arm.

q	Installing:

–	Open lock on control handwheel.

–	Push out control handwheel and turn to the front.

–	Insert the trailer arm into the trailer coupling frame Pos. 2.

–	Close lock on control handwheel.

5 -

2.5 Nm

6 -	Power socket

q

Removing:

–	Unscrew screws Pos. 5.

–	Remove power socket housing.

q	Installing:

Installation is carried out in the reverse order.

Diagram not available  Note

Use the type of power socket and the electric installation according to the relevant national legislation.

7 -

Support

8 -	Electrical cable with gasket

9 -

Nut

10 -

Rivet

11 -	Threaded plate
