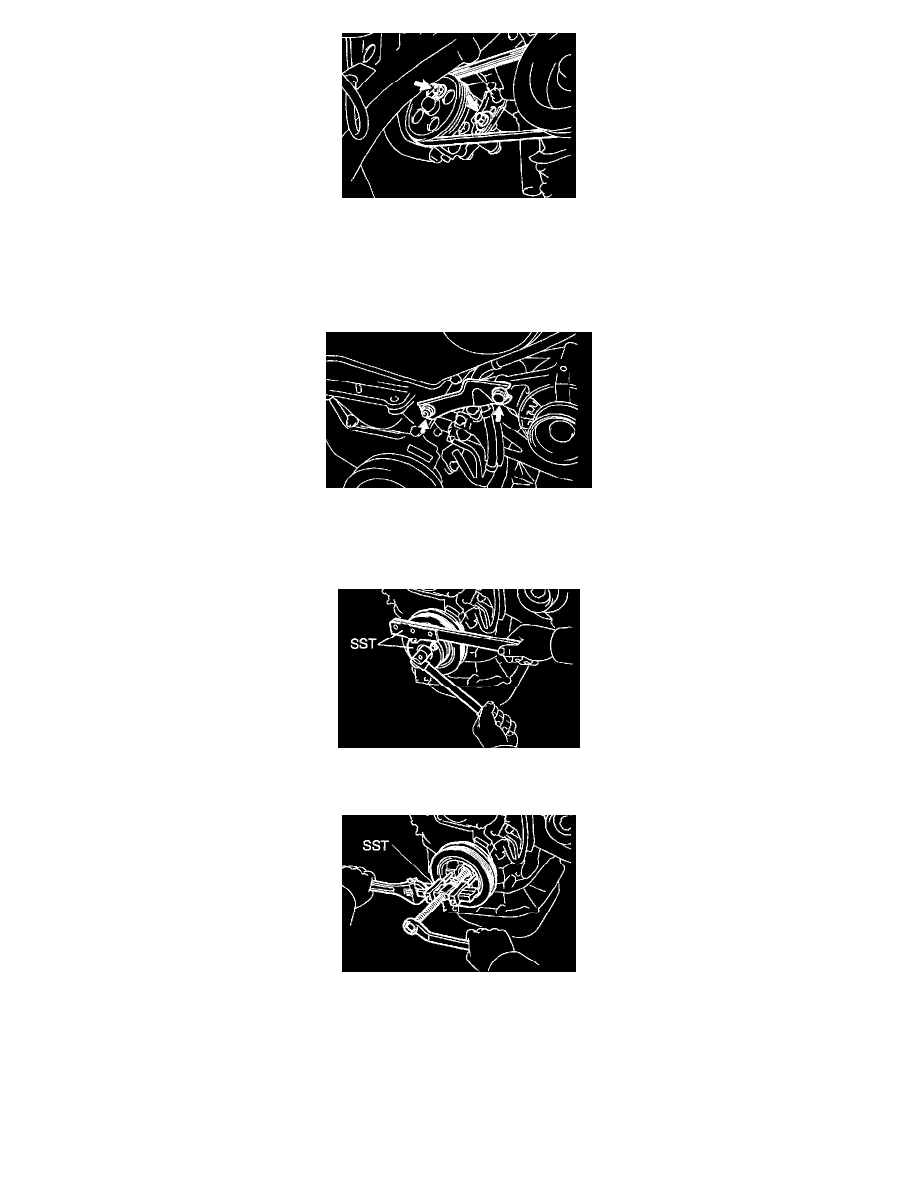

5. REMOVE PS PUMP DRIVE BELT
Loosen the 2 bolts, and remove the drive belt.
6. DISCONNECT ENGINE COOLANT RESERVOIR HOSE FROM WATER OUTLET
7. DISCONNECT GROUND STRAP CONNECTORS
8. DISCONNECT DLC1 FROM NO. 2 RH ENGINE MOUNTING BRACKET
9. REMOVE RH ENGINE MOUNTING STAY, ENGINE MOVING CONTROL ROD AND NO. 2 RH ENGINE MOUNTING BRACKET
10. REMOVE NO. 2 GENERATOR BRACKET
a. Loosen the generator pivot bolt.
b. Remove the nut and bracket.
11. REMOVE CRANKSHAFT PULLEY
a. Using SST, remove the pulley bolt.
SST 09213-54015 (91651-60855), 09330-00021
b. Using SST, remove the pulley.
SST 09950-50013 (09951-05010, 09952-05010, 09953-05010, 09953-05020, 09954-05021)
